(1-16) - PICTORIAL INDEX, STEERING HYDRAULICS, TWO WHEEL DRIVE TRACTORS

Запчасти Case IH 1896 (1-16) - PICTORIAL INDEX, STEERING HYDRAULICS, TWO WHEEL DRIVE TRACTORS (00) - PICTORIAL INDEX

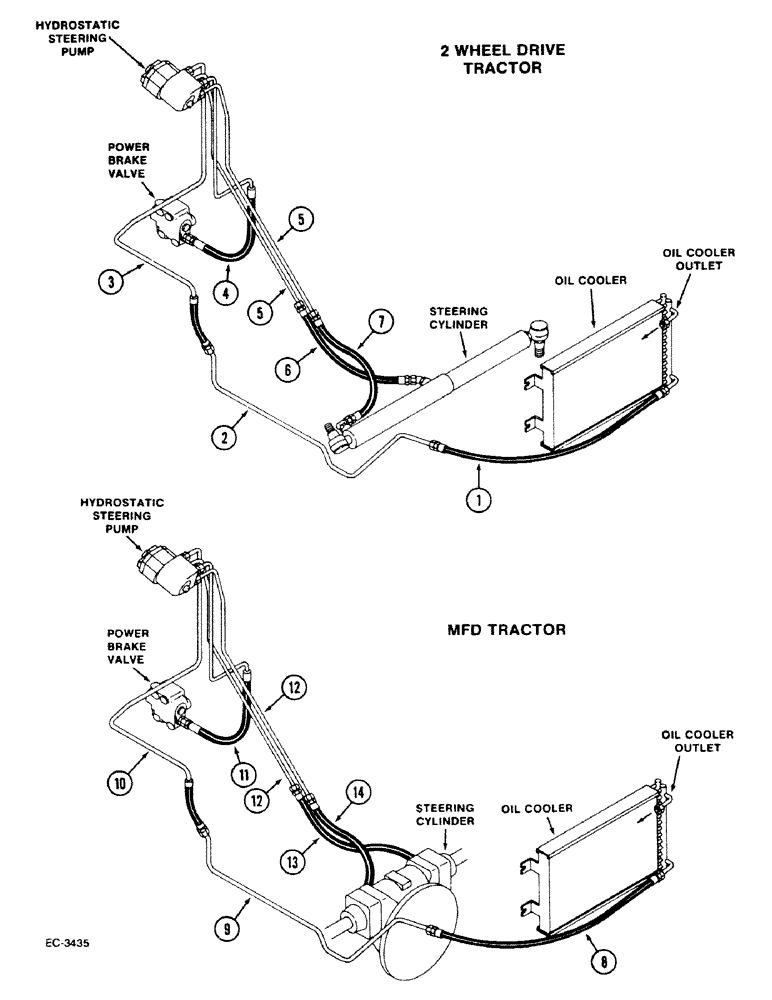

Схема запчастей Case IH 1896 - (1-16) - PICTORIAL INDEX, STEERING HYDRAULICS, TWO WHEEL DRIVE TRACTORS (00) - PICTORIAL INDEX
6
12
3
5
13
8
2
5
9
10
1
7
12
4
14
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Oil Cooler Inlet Hose, Figure 8-02

1шт.

2

Tube, Oil Cooler to Steering Pump, Page 8-3

1шт.

3

Tube, Steering Pump to Cooler, Page 8-3

1шт.

4

Hose, Steering Pump to Brake Valve, Page 5-9

1шт.

5

Hose, steering Pump to Cylinder, Page 5-9

1шт.

6

Cylinder Hose, Left Steering, Page 5-9

1шт.

7

Cylinder Hose, Right Steering, Page 5-9

1шт.

8

Oil Cooler Inlet Hose, Page 8-3, Mechanical Front Drive (MFD) Tractors

1шт.

9

Tube, Oil Cooler to Steering Pump, Page 8-3, Mechanical Front Drive (MFD) Tractors

1шт.

10

Tube, Steering Pump to Cooler, Page 8-3, Mechanical Front Drive (MFD) Tractors

1шт.

11

Hose, Steering Pump to Brake Valve, Page 5-9, Mechanical Front Drive (MFD) Tractors

1шт.

12

Hose, steering Pump to Cylinder, Page 5-9, Mechanical Front Drive (MFD) Tractors

1шт.

13

Cylinder Hose, Left Steering, Page 5-9, Mechanical Front Drive (MFD) Tractors

1шт.

14

Cylinder Hose, Right Steering, Page 5-9, Mechanical Front Drive (MFD) Tractors

1шт.
