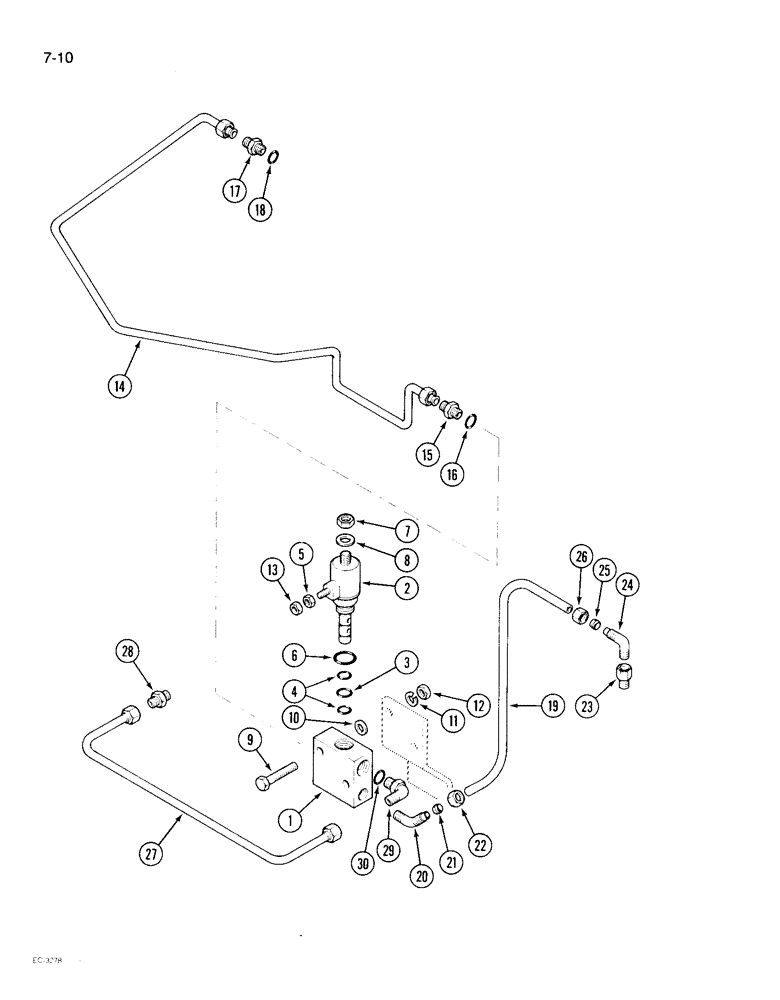

Запчасти Case IH 1896 (7-10) - DIFFERENTIAL LOCK VALVE AND TUBES (07) - BRAKES

A176599

VALVE

- solenoid, differential lock, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - distribution, solenoid valve (Order A176599)

1шт.

2

A49644

COIL

- solenoid valve

1шт.

3

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- coil

1шт.

4

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- coil

2шт.

5

129-16

NUT,#8-32

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

7

129-123

NUT,3/8"-24, G5

1шт.

8

195-2252

WASHER,.391" x 3/4" x .065"

- flat, 3/8 inch

1шт.

9

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch, grade 5

2шт.

10

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x .065 inch

2шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

13

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, No. 8

1шт.

14

A181863

TUBE

- lock, Serial Range: valve-transmission

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

UNION - straight, 3/8 inch tube x 9/16 inch NF, Incl. Ref. 16

1шт.

17

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

UNION - straight, 3/8 inch tube x 1/2 inch tube, Includes: Ref. 18

1шт.

19

A63670

TUBE

- nylon, 3/8 x 15 inch

1шт.

20

222-2726

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

- 45 degree, 3/8 inch tube x 1/4 inch NPTF, Includes: Ref. 21 and 22

1шт.

21

222-2611

SLEEVE

- 3/8 inch O.D. tube

1шт.

22

222-2601

NUT

NUT - hex, 3/8 inch tube, 17/32-24 inch thread

1шт.

23

217-1011

ADAPTER,1/8" - 27 Male NPTF x 1/4" - 18 Female NPTF

UNION - reducing, 1/4 inch NPTF x 1/8 inch NPTF

1шт.

24

222-2641

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

- 90 degree, 3/8 inch tube x 1/4 inch NPT, Includes: Ref. 25 and 26

1шт.

25

222-2611

SLEEVE

- 3/8 inch O.D. tube

1шт.

26

222-2601

NUT

NUT - hex, 3/8 inch tube, 17/32-24 inch thread

1шт.

27

A185920

TUBE

- lock valve to regulator valve

1шт.

28

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Union, Straight 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

29

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, 3/8 inch tube x 9/16 inch NF, Includes: Ref. 30

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.
