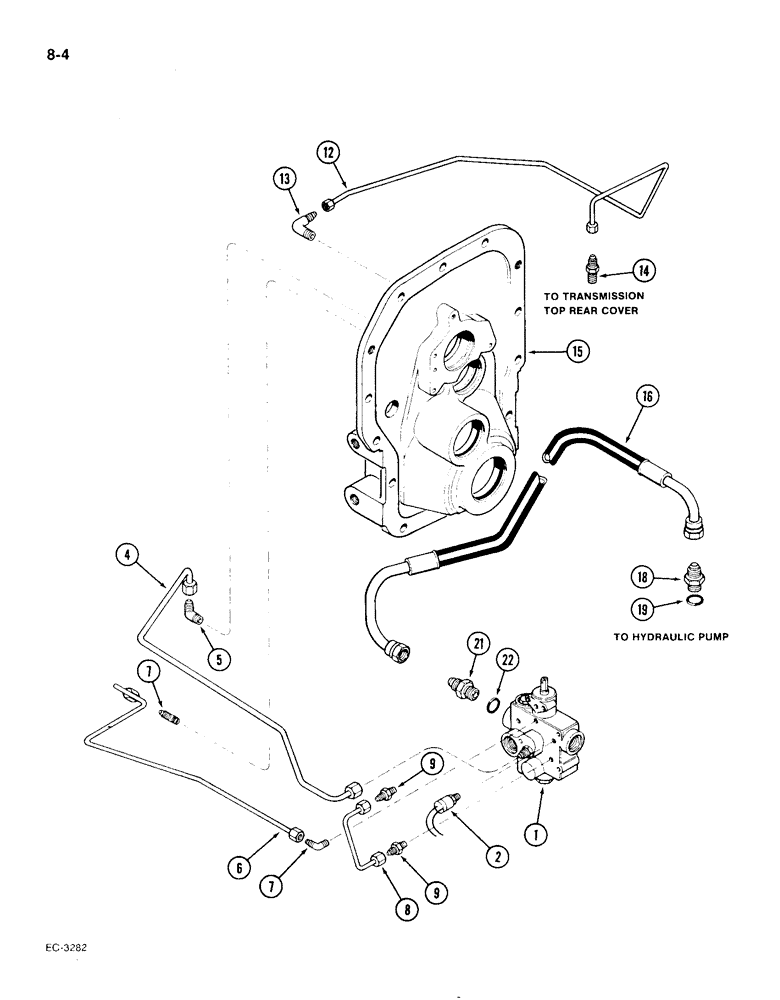

Запчасти Case IH 1896 (8-04) - PTO TUBES AND FITTINGS (08) - HYDRAULICS

1

G110272

VALVE

ASSEMBLY - PTO and clutch control

1шт.

2

A162422

SWITCH

- pressure, transmission oil

1шт.

4

A181869

TUBE

- PTO clutch (Replaces A162601)

1шт.

5

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 3/8 inch tube, 9/16 inch NF x 1/4 inch NPTF

1шт.

6

A181873

TUBE

- PTO brake (Replaces A145291)

1шт.

7

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 1/4 inch tube, 7/16 inch NF x 1/8 inch NPTF

2шт.

8

A143612

DISTRIBUTOR

- drain, PTO brake

1шт.

9

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, 3/8 inch NF x 1/8 inch NPTF

2шт.

12

A180295

TUBE

- lubrication, Serial Range: pump-PTO

1шт.

13

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree, 3/8 inch tube x 3/8 inch NPTF

1шт.

14

A149515

CONNECTOR, ELEC

UNION - restrictor, tube

1шт.

15

A157504

HOUSING

- PTO (See Figure 6-82)

1шт.

16

A160652

TUBE

HOSE - pump, regulator valve

1шт.

18

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

UNION - straight, reducing, 3/4 to 1 inch O.D. tube, Incl. Ref. 19

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1 inch O.D. tube, class 6

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

UNION - straight, 3/4 inch tube, 1-1/16 inch NF, Incl. Ref. 22

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch O.D. tube, class 6

1шт.
