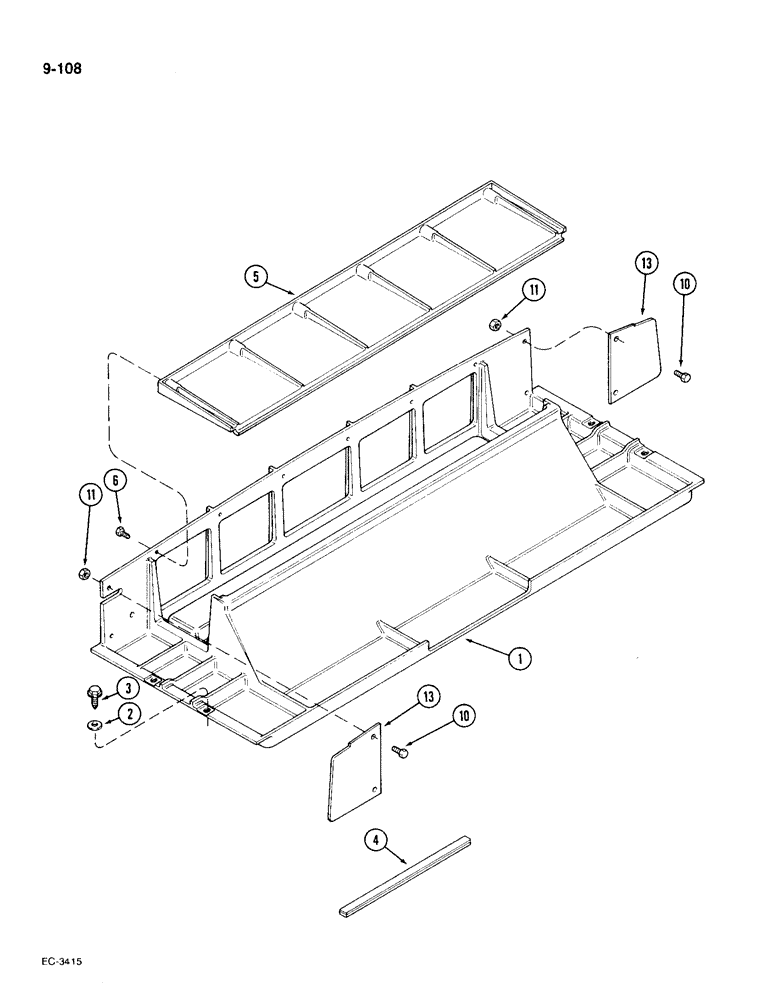

Запчасти Case IH 1896 (9-108) - CAB PLENUM (09) - CHASSIS/ATTACHMENTS

1

F64861

PAN

CHANNEL - air passage

1шт.

2

F44834

BUSHING

- nylon

4шт.

3

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - tapping, round x-recess, No. 10-16 x 3/4 inch

4шт.

4

F64736

SEAL - tube, floor, 111-1/2 inch (Cut from F64119)

2шт.

4

F64119

SEALING STRIP

SEAL - foam, bulk length, 100 ft (3048 cm)

1шт.

5

F64884

COVER

air duct top

1шт.

6

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - tapping, pan x-recess, No.8-16 x 3/4 inch

6шт.

10

424-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

- hex, 1/4 NC x 3/4 inch, grade 5

4шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, grade 5

4шт.

13

F63614

PLATE ASSY.

PLATE - end, air tube

2шт.
