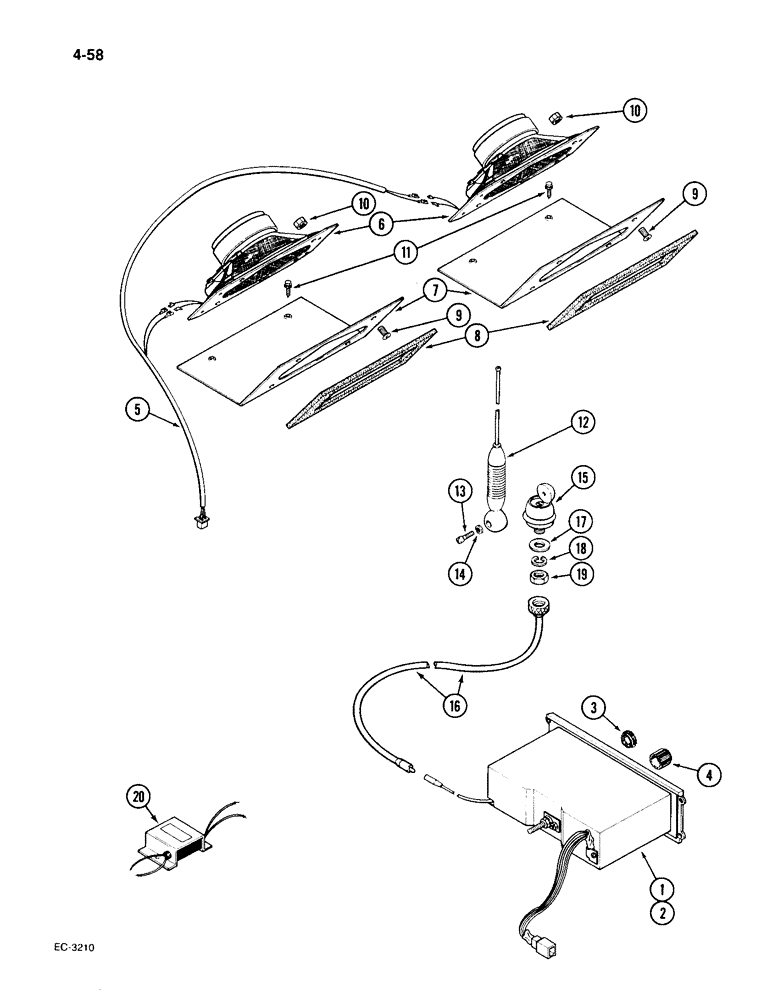

Запчасти Case IH 1896 (4-58) - RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

1

A167180

RADIO

KIT - radio, AM (Used with one piece panel), headliner mounted

1шт.

1

A167181

RADIO

KIT - radio, AM-FM stereo (Used with one piece panel), headliner mounted

1шт.

1

A167182

RADIO

KIT - radio, AM-FM, with eight track tape player (Used with one piece panel), headliner mounted

1шт.

1

A167183

RADIO

KIT - radio, AM-FM, with cassette tape player (Used with one piece panel), headliner mounted

1шт.

2

A180796

RADIO

KIT - radio, AM (Used with three piece panel), headliner mounted, Includes: Ref. 3 and 4

1шт.

2

A180797

RADIO

KIT - radio, AM-FM stereo (Used with three piece panel), headliner mounted, Includes: Ref. 3 and 4

1шт.

2

A180798

RADIO

KIT - radio, AM-FM stereo, with cassette tape player and weather band (Used with three piece panel), headliner mounted, Includes: Ref. 3 and 4

1шт.

3

A180058

KNOB

- control, volume, headliner mounted radio

1шт.

4

A180059

KNOB

- control, tuning, headliner mounted radio

1шт.

5

F66160

HARNESS

- speaker leads, headliner mounted radio

1шт.

Supplied with cab.

1шт.

6

F66124

HARNESS

SPEAKER - radio, headliner mounted

2шт.

Supplied with cab.

1шт.

7

F64667

PLATE

- speaker mounting, headliner, radio

2шт.

Supplied with cab.

1шт.

8

F64793

SEAL

GASKET - speaker sealing, headliner mounted radio

2шт.

Supplied with cab.

1шт.

9

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan x-recess, No. 10-24 x 3/4 inch, headliner mounted radio

8шт.

Supplied with cab.

1шт.

10

86625057

NUT,#10-24, GB

NUT, LOCK, , Headliner mounted radio #10-24, GB

8шт.

Supplied with cab.

1шт.

11

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, hex washer, No. 10-16 x 1/2 inch, headliner mounted radio

4шт.

Supplied with cab.

1шт.

A177631

ANTENNA

KIT - antenna, radio, headliner mounted, Includes: Ref. 12 - 16

1шт.

12

A177752

ANTENNA

- whip, headliner mounted radio

1шт.

13

177-99

SCREW,Sl Fil Hd, #10 - 32 x 5/8"

- fillister slotted, N0. 10 x 5/8 inch, headliner mounted radio

1шт.

14

192-149

WASHER

- lock, 3/16 inch, headliner mounted radio

1шт.

15

A177751

BASE - antenna, headliner mounted radio, Includes: Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

CABLE - antenna, headliner mounted radio

1шт.

17

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 7/64 inch, headliner mounted radio

1шт.

18

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2 inch, headliner mounted radio

1шт.

19

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF, grade 5, headliner mounted radio

1шт.

20

A180120

FILTER

- noise (Radio power line), headliner mounted

1шт.

A164225

RADIO

KIT - radio, AM-FM, with antenna (Not illustrated), fender mounted radio

1шт.
