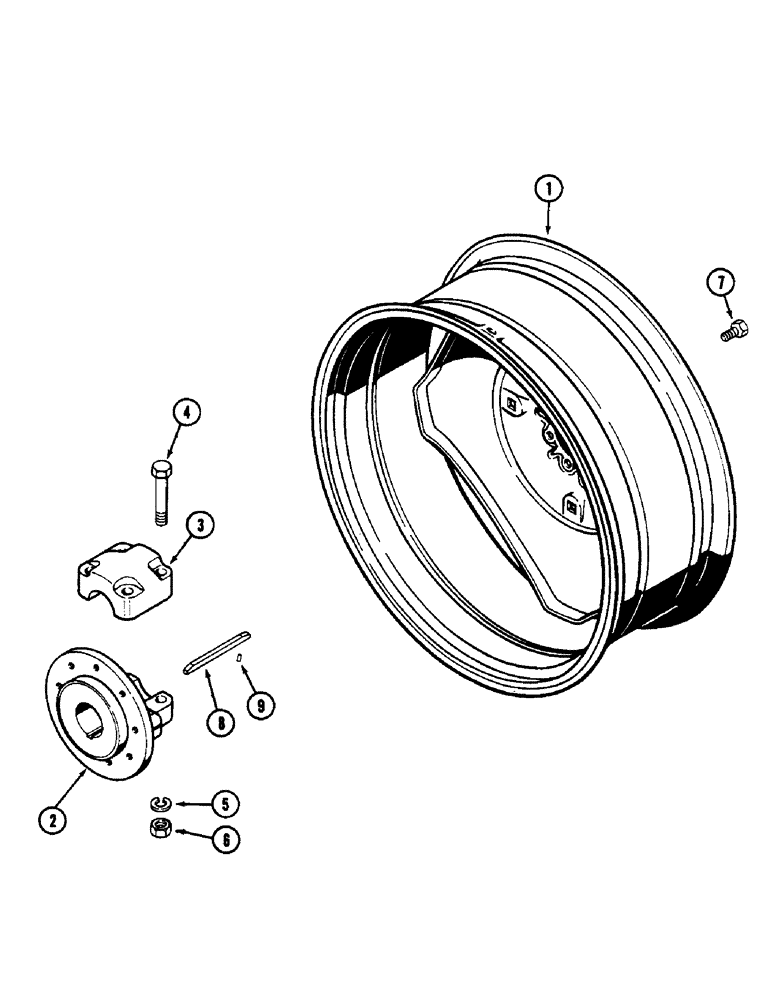

Запчасти Case IH 2090 (6-302) - STEEL DUAL REAR WHEELS, WITH 38 INCH (965 MM) RIMS (06) - POWER TRAIN

1

A34839

WHEEL

- outer dual (For 16.9 x 38 tire)

2шт.

A62565

HUB

ASSEMBLY - outer dual wheel, Includes: Ref. 2 - 6

2шт.

2

NSS

NOT SOLD SEPARAT

HUB

1шт.

3

A60627

CAP

- hub clamp

1шт.

4

114-807

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- hex, 7/8 NF x 6 inch

4шт.

5

192-29

LOCK WASHER,7/8"

7/8"

4шт.

6

129-129

NUT,7/8"-14, G5

- hex, 7/8 inch NF

4шт.

7

A62567

WHEEL BOLT

BOLT - wheel to hub, special, 5/8 NF x 1-1/2 inch

18шт.

8

A34890

BUCKET TOOTH KEY

KEY - hub to axle shaft, 5/8 square x 6 inch long (16 x 152 mm)

2шт.

9

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, (M6 x 13) 1/4" x 1/2", Slotted

2шт.
