(9-556) - FOUR POST PROTECTIVE FRAME, P.I.N. 8841101 AND AFTER

Запчасти Case IH 2090 (9-556) - FOUR POST PROTECTIVE FRAME, P.I.N. 8841101 AND AFTER (09) - CHASSIS/ATTACHMENTS

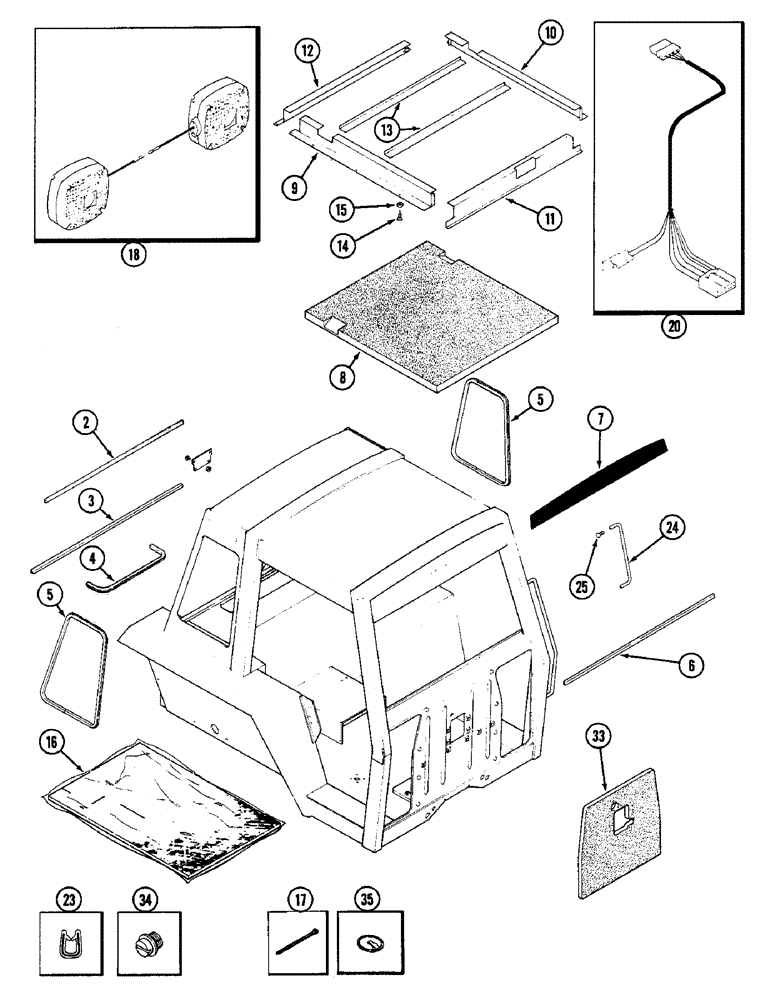

Схема запчастей Case IH 2090 - (9-556) - FOUR POST PROTECTIVE FRAME, P.I.N. 8841101 AND AFTER (09) - CHASSIS/ATTACHMENTS
12
14
9
11
13
34
16
24
25
17
20
33
10
15
5
7
8
18
5
23
2
4
3
35
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

F98202

ROPS

FRAME ASSEMBLY - protective (Machinery item), Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - welded (Order F98202)

1шт.

2

NSS

NOT SOLD SEPARAT

MOULDING - rear window, 45 inch long (1143 mm) (Order F64277)

1шт.

3

NSS

NOT SOLD SEPARAT

MOULDING - rear window, 51 inch long (1295 mm) (Order F64277)

1шт.

4

NSS

NOT SOLD SEPARAT

MOULDING - horizontal window, 32-3/4 inch long (832 mm) (Order F64277)

1шт.

5

NSS

NOT SOLD SEPARAT

MOULDING - rear side window, 81-1/2 inch long (2070 mm) (Order F64277)

2шт.

6

NSS

NOT SOLD SEPARAT

MOULDING - front window, 49-1/2 inch (1257 mm) (Order F64277)

1шт.

7

A45582

PLATE

DECAL - front panel

1шт.

8

F64125

LINING

HEADLINER

1шт.

9

F63968

PANEL

- right hand support, headliner

1шт.

10

F63969

PANEL

- left hand support, headliner

1шт.

11

F63970

PANEL

- front support, headliner

1шт.

12

F63971

PANEL

- rear support, headliner

1шт.

13

F64123

BRACKET

ANGLE - center support, headliner

2шт.

14

187-1098

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval head Phillips, no. 10-16 x 3/4 inch

19шт.

15

F64315

WASHER

- finishing

19шт.

16

F64421

MAT

- under floor

1шт.

17

R37160

RETAINER

- mat

11шт.

18

REF

INSTRUCTION

LAMP - warning, See Figure 4-156

2шт.

20

F64461

HARNESS

- wire, lower port

1шт.

23

F64277

SEAL

MOULDING - window, 50 feet roll (1.27 M)

1шт.

24

A143834

HANDLE

- mounting

1шт.

25

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

(Order 113-103 and 195-521) Hex Flg, 5/16"-18 x 3/4", Serr

2шт.

30

A149306

COVER

- rear, fuel tank water trap opening

1шт.

31

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- slotted pan head, no. 10-24 x 1/2 inch

4шт.

32

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - Keps, no. 10-24

4шт.

33

A147357

PAD

- firewall

1шт.

34

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes Slotted, 1/2"-13

4шт.

35

T54520

STRAP

- nylon, wire harness (Order A169433)

1шт.
