(4-066) - CONSOLE HARNESS, P.I.N. 8841101 AND AFTER

Запчасти Case IH 2090 (4-066) - CONSOLE HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS

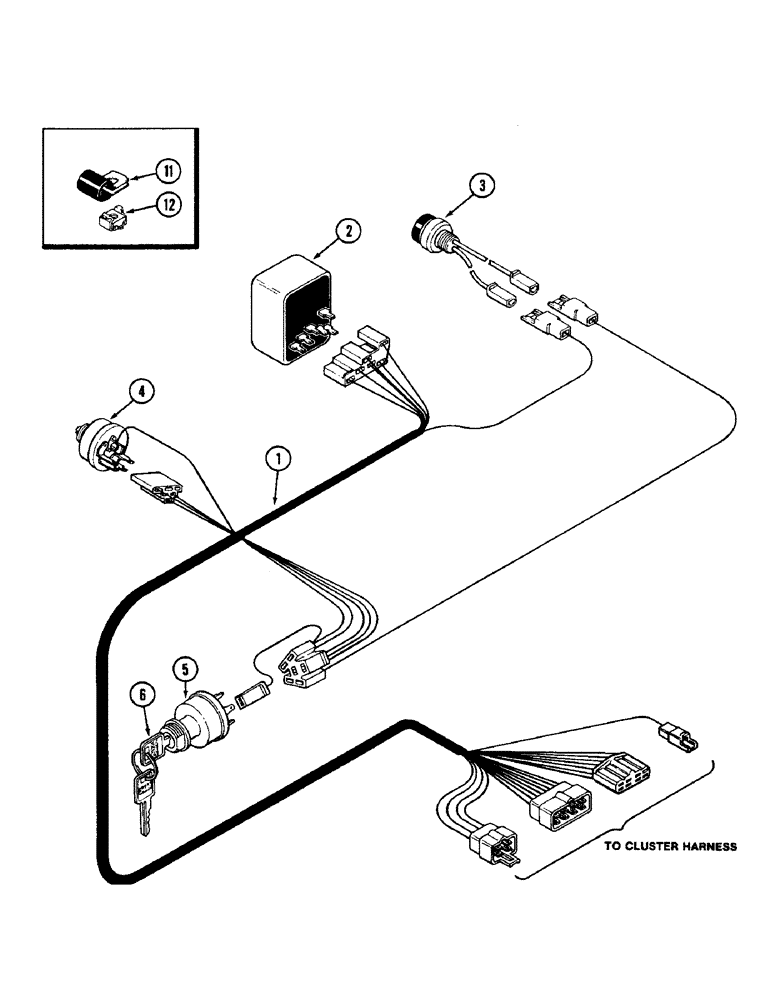

Схема запчастей Case IH 2090 - (4-066) - CONSOLE HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS
12
3
1
4
2
6
11
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A160586

HARNESS

- steering console

1шт.

2

A77184

SWITCH

- flasher and turn signal

1шт.

3

A135520

SWITCH

- cold start

1шт.

4

A141607

SWITCH

- lamp

1шт.

5

L61053

IGNITION SWITCH

SWITCH - starting

1шт.

6

A77313

SET OF 2 KEYS

KEY - starting switch (Set of 2) (Also use for cab door)

1шт.

11

49838

CLAMP

- harness to steering column

1шт.

12

131-133

NUT,Ret, 3/8"-16

Tinnerman speed Ret, 3/8"-16

1шт.

Выбрано товаров: 8
