(4-088) - REAR LIGHT HARNESS, P.I.N. 8841101 AND AFTER

Запчасти Case IH 2090 (4-088) - REAR LIGHT HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS

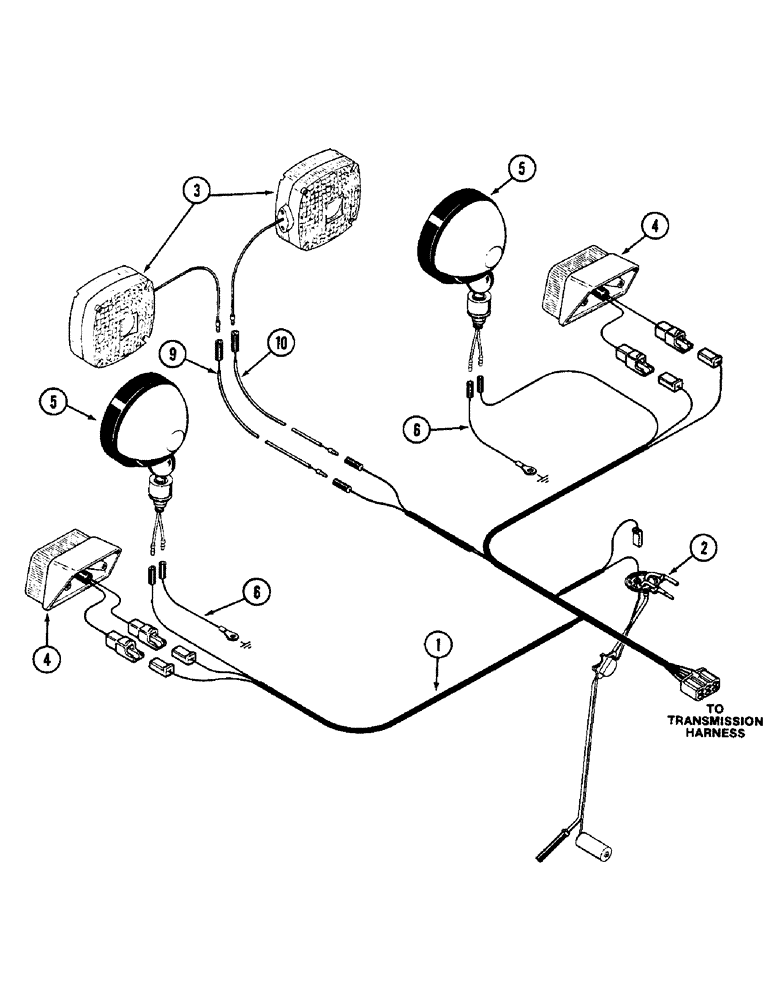

Схема запчастей Case IH 2090 - (4-088) - REAR LIGHT HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS
6
10
5
4
1
6
2
3
9
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A160587

HARNESS

- rear light

1шт.

2

REF

INSTRUCTION

SENDER - fuel level, See Figure 3-62

1шт.

3

A44201

LIGHT ASSY.

LAMP - flasher

2шт.

4

A143925

LAMP

- tail

2шт.

5

A145495

LAMP

- rear flood

3шт.

6

A147343

ELECTRICAL WIRE

WIRE - rear flood ground

3шт.

9

A160292

ELECTRICAL WIRE

WIRE - right flasher light, 90 inch (2 286 mm) (Without cab)

1шт.

10

A160293

ELECTRICAL WIRE

WIRE - left flasher light, 12 inch (305 mm) (Without cab)

1шт.
