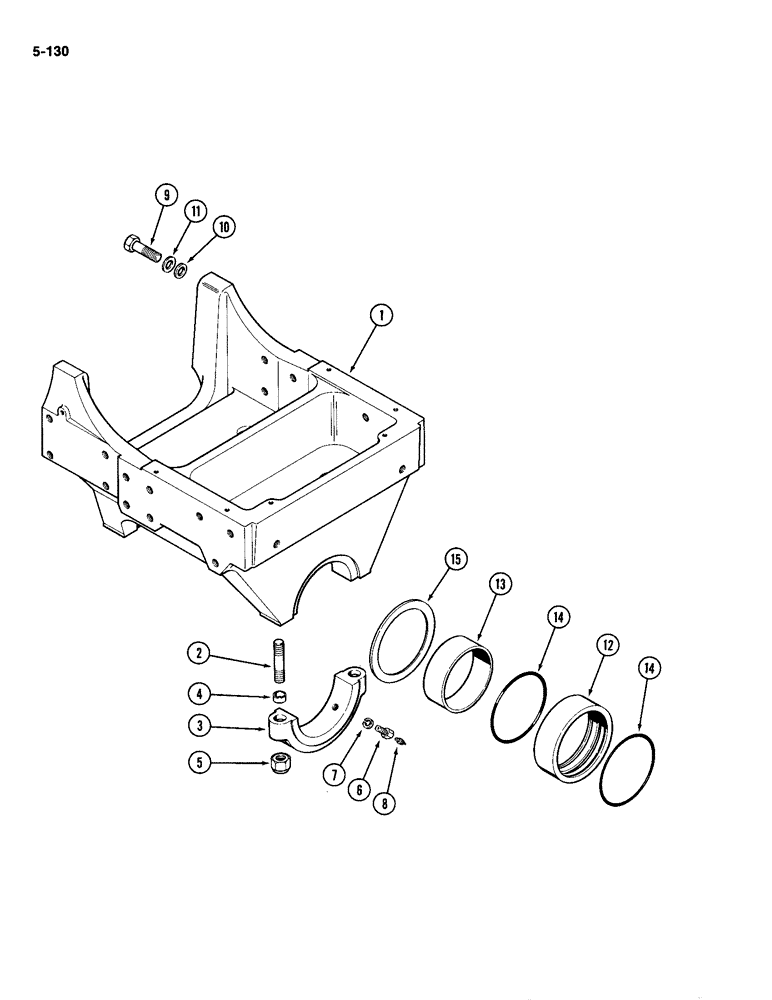

Запчасти Case IH 2094 (5-130) - FRONT AXLE SUPPORT, MFD TRACTORS (05) - STEERING

1

A164392

SUPPORT ASSY.

SUPPORT - front axle, Includes: Refs. 2 - 8

1шт.

2

A163186

STUD

-, Serial Range: cap-support

4шт.

3

NSS

NOT SOLD SEPARAT

CAP - support bearing (Order A164392) (Reference No. A164306)

2шт.

4

A163187

PIN

DOWEL - cap

4шт.

5

A163188

NUT

- lock, cap retaining

4шт.

6

A169980

BOLT

LOCK - support bearing (Replaces A163189)

2шт.

7

892-1012

LOCK WASHER,M12

WASHER - lock, support bearing

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (Used with A169980 lock)

2шт.

9

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch (Grade 8)

4шт.

10

195-545

WASHER,3/4", SAE

- 13/16 x 1-15/32 x 1/8 inch (21 x 37 x 3 mm)

4шт.

11

A26462

WASHER

- hardened, 1-14/ inch (32 mm)

4шт.

12

A48022

BUSHING

- axle support (Carraro No. 107714)

1шт.

13

A48021

SLEEVE

- axle support (Carraro No. 107715)

1шт.

14

S5757

O-RING,6.237" ID x 6.443" OD x 0.103"

- support bushing (Carraro No. 28511)

2шт.

15

A48023

WASHER

- axle pivot thrust (Carraro No. 100713)

1шт.
