(5-136) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS, CARRARO AXLE

Запчасти Case IH 2094 (5-136) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS, CARRARO AXLE (05) - STEERING

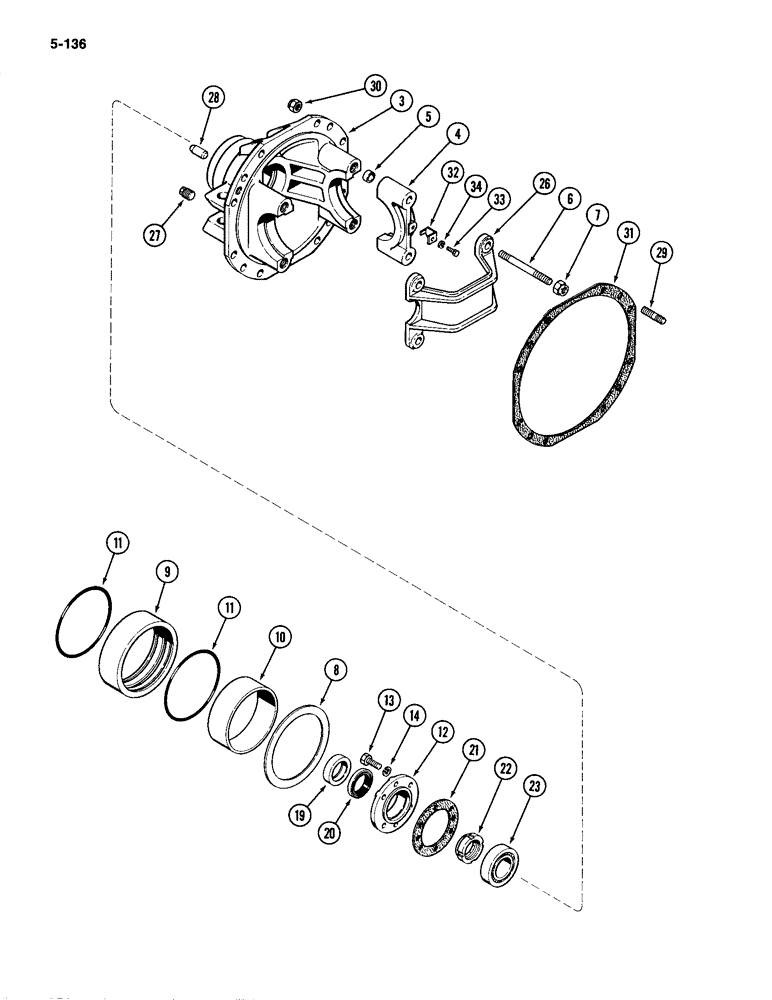

Схема запчастей Case IH 2094 - (5-136) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS, CARRARO AXLE (05) - STEERING
20
21
11
5
32
11
22
4
30
9
26
8
31
7
29
23
12
14
28
27
34
19
33
6
10
3
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A156672

SHAFT

AXLE ASSEMBLY - MFD front, Continued from Figure 5-134, Includes: Refs. 3 - 34 and support assembly, P/N A48024

1шт.

NLS

NO LONGER SERVICED

ASSEMBLY - differential (Carraro No. 107764), Includes: Refs. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

SUPPORT - differential (Order A48024) (Reference No. A4025)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - differential support (Order A48024) (Reference No. A48026)

2шт.

5

A48027

PIN

DOWEL - differential support (Carraro No. 104494)

4шт.

6

A48028

STUD

- differential support (Carraro No. 107491)

4шт.

7

A48148

NUT

- hex lock, M20 x 1.5 (Carraro No. 22441)

4шт.

8

A48023

WASHER

- axle pivot thrust (Carraro No. 107713)

1шт.

9

A48022

BUSHING

- front sleeve (Carraro No. 107714)

2шт.

10

A48021

SLEEVE

- front (Carraro No. 107715)

2шт.

11

S5757

O-RING,6.237" ID x 6.443" OD x 0.103"

- bushing (Carraro No. 28511)

4шт.

12

A48093

SUPPORT

CARRIER - support seal (Carraro No. 107424)

1шт.

13

K956926

BOLT

- carrier retaining, M12 x 35 mm full thread (Carraro No. 20921)

6шт.

14

K956820

WASHER

- retaining lock bolt, M12 (Carraro No. 22861) (Order K965425)

1шт.

19

A48095

SEAL

- dust, carrier (Carraro No. 107754)

1шт.

20

A48094

OIL SEAL

- oil, carrier (Carraro No. 25355)

1шт.

21

A48096

GASKET

- carrier (Carraro No. 107755)

1шт.

22

A48036

NUT

- bearing lock, M50 left thread (Carraro No. 107930)

1шт.

23

A48035

TAPERED BEARING,110mm OD x 42.25mm

BEARING - differential support, rear (Carraro No. 27422)

1шт.

26

A48029

CAP

- differential support (Carraro No. 107414)

1шт.

27

K965379

PIN,M6 x 36, Coiled

PLUG - differential support drain (Carraro No. 92270)

1шт.

28

A48031

PIN

DOWEL - support to axle (Carraro No. 76379)

2шт.

29

A48030

STUD

- support to axle (Carraro No. 106198)

10шт.

30

K965250

NUT

- hex lock, M14 x 1.5 (Carraro No. 22429)

10шт.

31

A48032

GASKET

- support to axle (Carraro No. 107756)

1шт.

32

A48039

LOCK

- bearing (Carraro No. 107489)

2шт.

33

814-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

(Carraro No. 20775) Hex, M8 x 12, 8.8, Full Thd

2шт.

34

K965360

LOCK WASHER,M8

WASHER - lock, (Carraro No. 22856) (Order 892-1108) M8

2шт.
