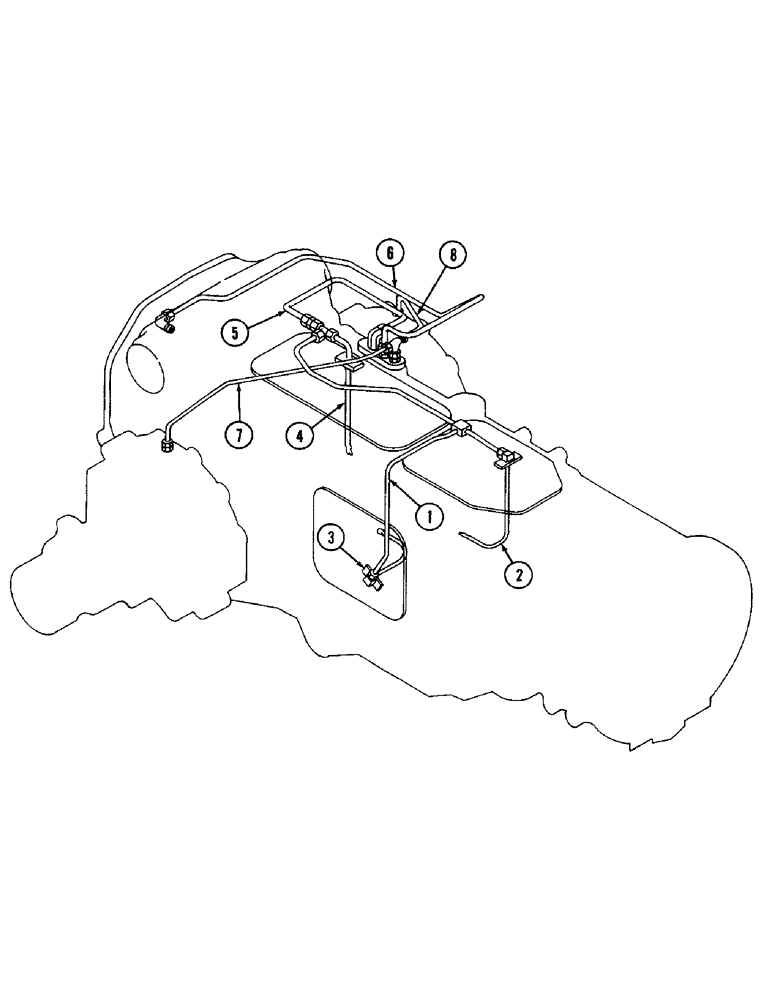

Запчасти Case IH 2096 (1-014) - PICTORIAL INDEX, LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX

1

Transmission gear lubrication tube, Page 8-262

1шт.

2

Transfer gear lubrication tube, Page 8-262

1шт.

3

Second and third gear lubrication tube, Page 8-262

1шт.

4

Spiral bevel lubrication tube, Page 8-262

1шт.

5

Spiral bevel supply tube, Page 8-262

1шт.

6

Pump to PTO lubrication tube, Page 8-250

1шт.

7

Planetary lubrication tube, right hand (Transmission serial no. 16246636 and after), Page 8-262

1шт.

8

Planetary lubrication tube, left hand (Transmission serial No. 16246636 and after), Page 8-262

1шт.
