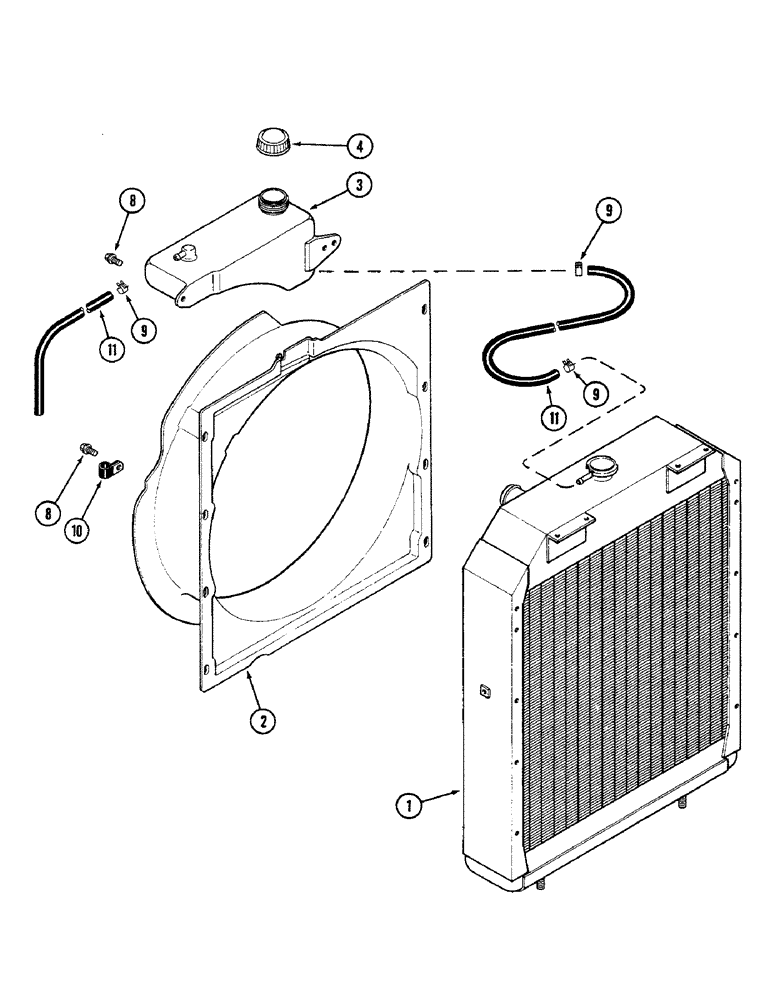

Запчасти Case IH 2096 (2-004) - COOLANT RECOVERY BOTTLE, 6TA-590 DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR - cooling system, see Figure 2-002

1шт.

2

REF

INSTRUCTION

SHROUD - radiator, see Figure 2-002

1шт.

3

A171804

BOWL

BOTTLE - recovery

1шт.

4

A171775

CAP

- recovery

1шт.

8

REF

INSTRUCTION

SCREW - retainer, see Ref. 21 in Figure 2-002

1шт.

9

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - hose

3шт.

10

49885

CLAMP

CLIP - hose

3шт.

11

A172913

HOSE,7.50 mm ID, 8.30 mm ID x 950.00 mm, SAE 30R6 per J30

- Drain, Recovery (Replaces A171019) 7.50 mm ID, 8.30 mm ID x 950.00 mm, SAE 30R6 per J30

2шт.
