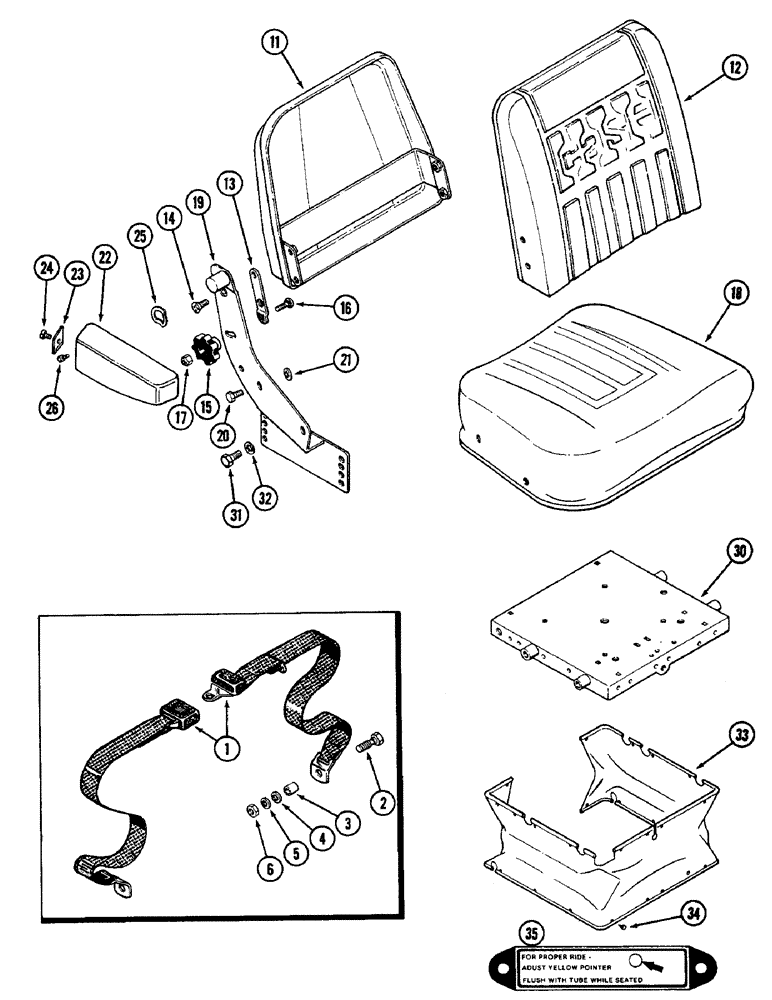

Запчасти Case IH 2096 (9-366) - SEAT BELT, VINYL SEAT (09) - CHASSIS/ATTACHMENTS

1

A160404

SAFETY BELT

BELT - seat safety

1шт.

2

A61946

STEP BOLT

BOLT - shoulder, seat belt

2шт.

3

A60907

BUSHING

SPACER - bolt

2шт.

4

195-529

WASHER,7/16", SAE

- flat, 15/32 x 59/64 x 1/16 inch (10 x 23 x 2 mm)

2шт.

5

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

6

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NC

2шт.

A177457

SEAT

AND SUSPENSION ASSEMBLY - vinyl (Without swivel), Includes: Ref. 11 - 35 in this figure and parts in Figure 9-368

1шт.

A49655

BACKREST

ASSEMBLY - cushion, Includes: Ref. 11 - 13, vinyl seat without swivel

1шт.

11

NSS

NOT SOLD SEPARAT

PAN - backrest (Order A49655), vinyl seat without swivel

1шт.

12

NSS

NOT SOLD SEPARAT

PAD AND COVER - backrest (Order A49655), vinyl seat without swivel

1шт.

13

A48343

LINK

- tilt, backrest, vinyl seat without swivel

2шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- flat Phillips, 3/8 NC x 1 inch, vinyl seat without swivel

2шт.

15

A45487

BUTTON

KNOB - tilt, backrest, vinyl seat without swivel

2шт.

16

A45527

CARRIAGE BOLT

- retaining, link, vinyl seat without swivel

2шт.

17

131-206

NUT,3/8"-16

NUT - hex jam, 3/8 inch NC, vinyl seat without swivel

2шт.

18

A45570

CUSHION

SEAT - cushion, vinyl, without swivel

1шт.

19

A49656

SUPPORT

BRACKET - right side (Shown), vinyl seat without swivel

1шт.

19

A49657

SUPPORT

BRACKET - left side, vinyl seat without swivel

1шт.

20

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex, 1/2 NC x 1-1/2 inch, vinyl seat without swivel

4шт.

21

A45116

WASHER

SPACER - cushion, vinyl seat without swivel

4шт.

22

A45489

ARMREST

- right (Shown), vinyl seat without swivel

1шт.

22

A45488

ARMREST

- left, vinyl seat without swivel

1шт.

23

A45584

COVER

PLATE - right armrest (Shown), vinyl seat without swivel

1шт.

23

A45583

PLATE

COVER PLATE - left armrest, vinyl seat without swivel

1шт.

24

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - self-tapping, no. 10 x 5/8 inch NC, vinyl seat without swivel

1шт.

25

A47352

WASHER

- wave, 1-1/8 inch ID, vinyl seat without swivel

2шт.

26

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest, Vinyl seat without swivel Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

30

A46726

HOUSING

PLATE - upper housing, vinyl seat without swivel

1шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Vinyl seat without swivel Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

32

193-92

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal lock, 5/16 inch, vinyl seat without swivel

4шт.

33

A45576

BOOT

COVER - suspension, vinyl seat without swivel

1шт.

34

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RIVET - snap button, 1/2 inch, vinyl seat without swivel

24шт.

35

N6856

DECAL

- instruction (Order A47778), vinyl seat without swivel

1шт.
