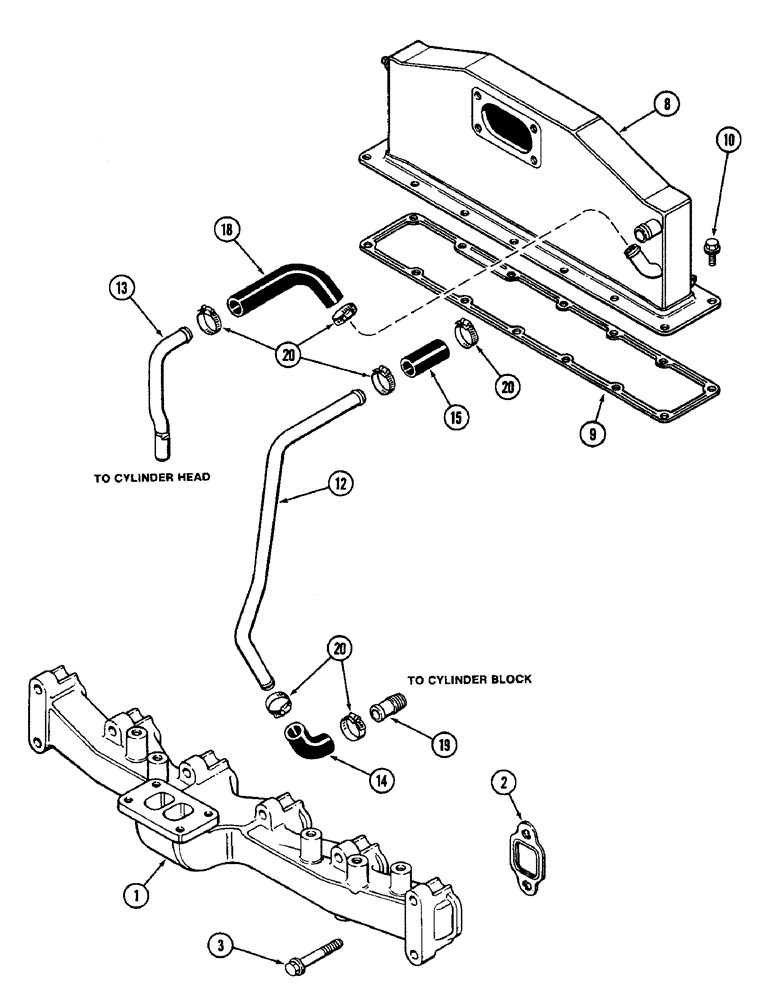

Запчасти Case IH 2096 (2-018) - MANIFOLDS, 6TA-590 DIESEL ENGINE (02) - ENGINE

1

J902347

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- mounting, manifold, exhaust

6шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

BOLT - hex flanged, M10 x 65, Exhaust

12шт.

8

JR903429

REMAN-OIL COOLER

AFTERCOOLER ASSEMBLY - intake (Remanufactured) (North America only)

1шт.

8

JC903429

CORE-OIL COOLER

RETURN NUMBER - aftercooler (Use this number when returning aftercooler core for credit), intake

1шт.

8

J903429

COOLER ASSY.

AFTERCOOLER ASSEMBLY - intake (New)

1шт.

9

J907036

GASKET

- mounting, intake aftercooler

1шт.

10

J903331

FLANGE BOLT

BOLT - flanged hex, M8 x 16 MM (Replaces J900629), intake aftercooler

14шт.

12

J907168

TUBE

- supply, aftercooler, intake

1шт.

13

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

- drain, aftercooler, intake

1шт.

14

J903391

HOSE

- molded, supply tube, intake aftercooler

1шт.

15

J907169

HOSE

Supply Tube to Aftercooler, Intake

1шт.

18

J903234

HOSE

- molded, aftercooler to drain tube, intake

1шт.

19

J907167

SPLINED COUPLING

COUPLING - supply hose, intake aftercooler

1шт.

20

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch, intake aftercooler

6шт.
