(5-120) - ADJUSTABLE FRONT AXLE TIE RODS, WITH 108 INCH (2743 MM) WHEEL BASE

Запчасти Case IH 2096 (5-120) - ADJUSTABLE FRONT AXLE TIE RODS, WITH 108 INCH (2743 MM) WHEEL BASE (05) - STEERING

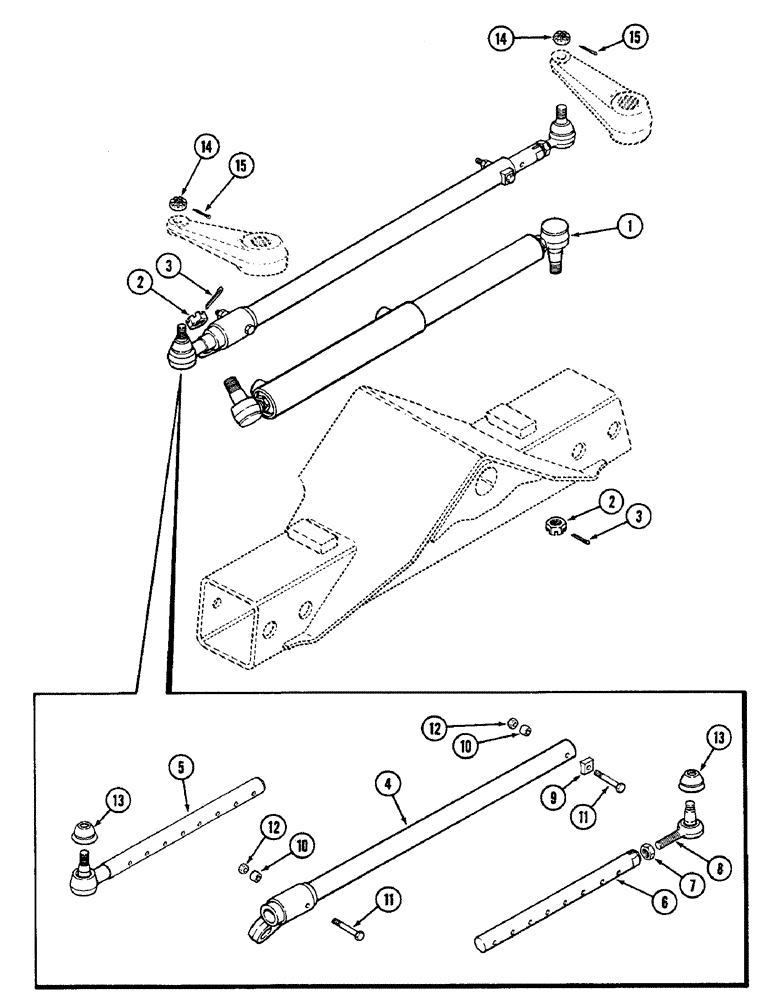

Схема запчастей Case IH 2096 - (5-120) - ADJUSTABLE FRONT AXLE TIE RODS, WITH 108 INCH (2743 MM) WHEEL BASE (05) - STEERING
10
15
6
4
12
12
11
9
11
8
14
2
3
13
5
14
13
10
3
2
15
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER - steering, see Figure 5-112

1шт.

2

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex slotted, 7/8 inch NF

2шт.

3

132-337

COTTER PIN,1/8" x 1 3/4"

1/8" x 1 3/4"

2шт.

4

A149033

TUBE

- tie rod

1шт.

5

A160197

ROD

END - tie rod, RH

1шт.

6

A143876

ROD

END - tie rod, LH

1шт.

7

F22580

NUT

- hex lock, special

1шт.

8

A162214

BALL

JOINT - end ball, LH

1шт.

9

A43369

CLAMP

- tie rod

1шт.

10

A145846

SPACER

- clamp, tie rod

2шт.

11

26-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex, 3/8 NC x 3 inch (Grade 8)

2шт.

12

131-52

NUT,3/8"-16, GC

NUT - lock, 3/8 inch NC

2шт.

13

A160642

COVER

- dust

2шт.

14

129-610

SLOTTED NUT,5/8"-18, G5

2шт.

15

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

2шт.
