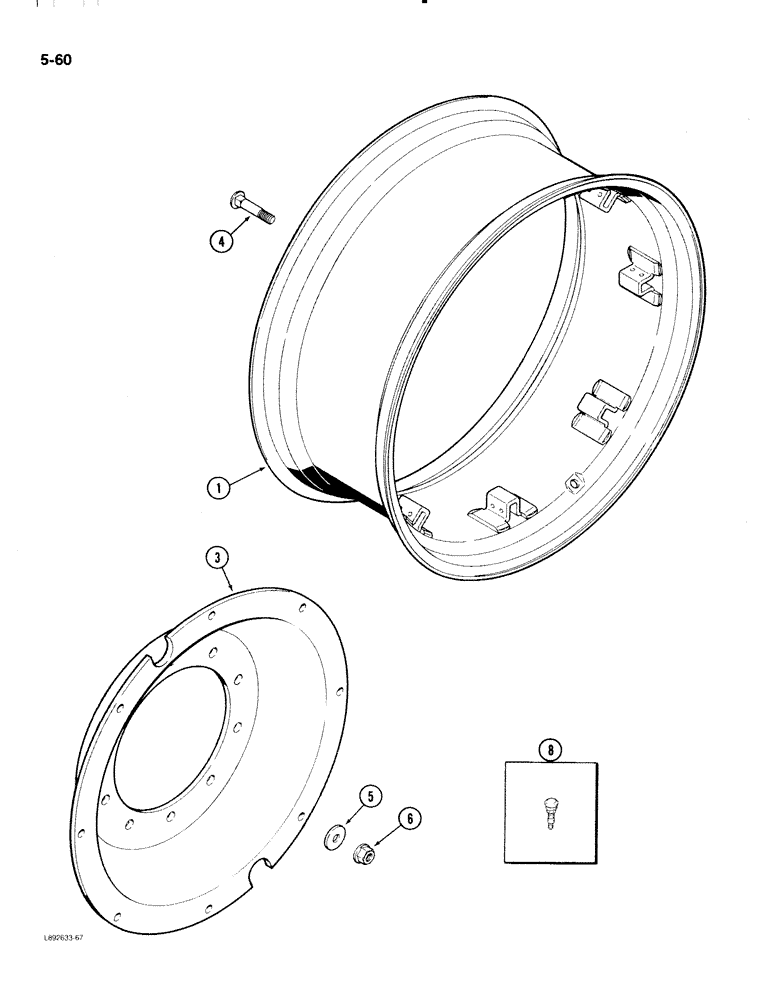

Запчасти Case IH 2096 (5-060) - HEAVY DUTY FRONT WHEELS, MFD TRACTORS (05) - STEERING

1

A185510

RIM

- wheel (W15 x 26) (For 18.4 and 18.4R tires), 26 inch wheels

2шт.

3

A185506

DISC

- 26 inch wheel

2шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, , 26 inch wheels Short NK, 5/8"-11 x 3 1/4", G5

16шт.

5

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch, 26 inch wheels

16шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex, flange, 5/8 inch NC, 26 inch wheels

16шт.

8

A20058

VALVE STEM

- Wheel, tubeless tire, 26 inch wheels

2шт.

1

A185508

RIM

- wheel (W12 x 28) (For 13.6 and 14.9 tires), 28 inch wheels

2шт.

1

A185509

RIM

- wheel (W15 x 28) (For 16.9 and 18.4 tires), 28 inch wheels

2шт.

3

A185507

DISC

- 28 inch wheel

2шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, , 28 inch wheels Short NK, 5/8"-11 x 3 1/4", G5

16шт.

5

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch, 28 inch wheels

16шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex, flange, 5/8 inch NC, 28 inch wheels

16шт.

8

A20058

VALVE STEM

- Wheel, tubeless tire, 28 inch wheels

2шт.
