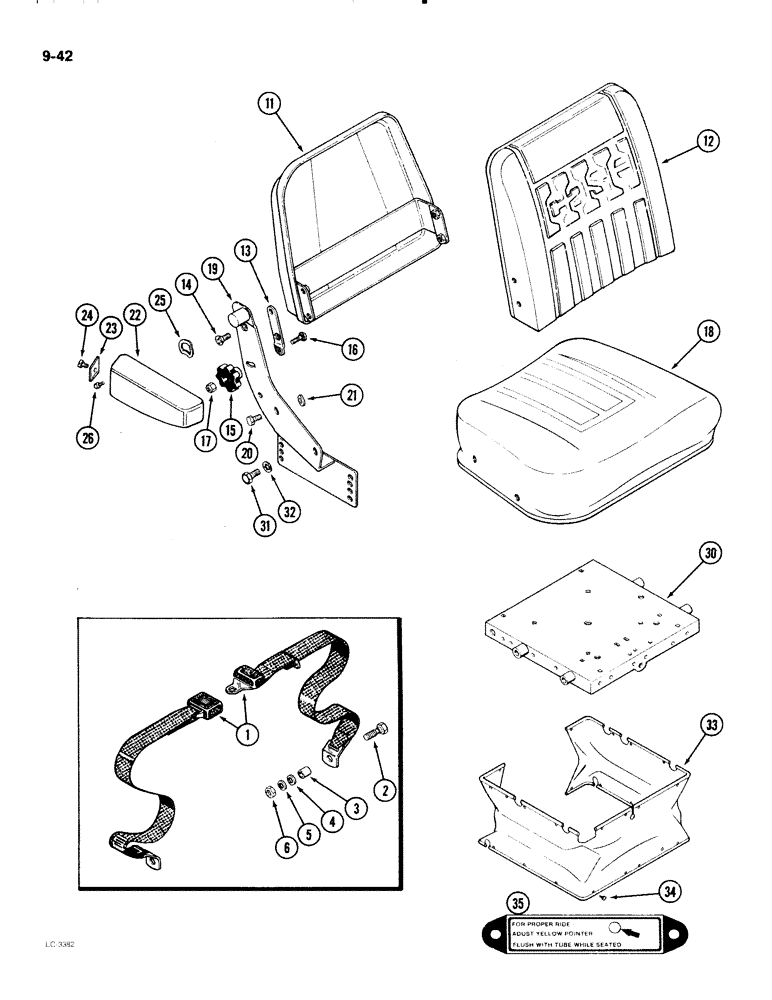

Запчасти Case IH 2096 (9-042) - VINYL SEAT, SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

A160404

SAFETY BELT

BELT - safety, seat

1шт.

2

A61946

STEP BOLT

BOLT - shoulder, seat belt

2шт.

3

A60907

BUSHING

SPACER - bolt

2шт.

4

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

2шт.

5

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

6

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NC

2шт.

A177457

SEAT

ASSEMBLY - vinyl, with suspension unit (Without swivel), Includes: backrest cushion assembly and Ref. 11 - 35 in this figure and parts in Figure 9-044

1шт.

A49655

BACKREST

CUSHION ASSEMBLY - backrest, seat without swivel, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

PAN - backrest (Order A49655), seat without swivel

1шт.

Part of Seat Cushion Kit, P/N 1987124C1

1шт.

12

NSS

NOT SOLD SEPARAT

PAD - backrest, with cover (Order A49655), seat without swivel

1шт.

Part of Seat Cushion Kit, P/N 1987124C1

1шт.

13

A48343

LINK

- backrest tilt, seat without swivel

2шт.

14

187-1270

SELF-TAP SCREW,Flat, 3/8" - 18 x 1"

SCREW - self-tapping, flat Phillips, 3/8 NC x 1 inch, seat without swivel

2шт.

15

A45487

BUTTON

KNOB - backrest tilt, seat without swivel

2шт.

16

A45527

CARRIAGE BOLT

- tilt knob, seat without swivel

2шт.

17

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC, seat without swivel

2шт.

18

A45570

CUSHION

- seat, seat without swivel

1шт.

Part of Seat Cushion Kit, P/N 1987124C1

1шт.

19

A49656

SUPPORT

BRACKET - seat, right, seat without swivel

1шт.

19

NLS

NO LONGER SERVICED

BRACKET - seat, left, seat without swivel

1шт.

20

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Seat w/o swivel Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

21

A45116

WASHER

SPACER - cushion, seat without swivel

4шт.

22

A45489

ARMREST

- right, seat without swivel

1шт.

22

A45488

ARMREST

- left, seat without swivel

1шт.

23

A45584

COVER

PLATE - cover, right armrest, seat without swivel

1шт.

23

A45583

PLATE

- cover, left armrest, seat without swivel

1шт.

24

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, pan head slotted, No. 10-16 x 5/8 inch, seat without swivel

1шт.

25

A47352

WASHER

- wave, 1-1/8 inch ID, seat without swivel

2шт.

26

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest, Seat without swivel Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

30

A46726

HOUSING

PLATE - housing, upper, seat without swivel

1шт.

31

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, seat without swivel

4шт.

32

193-92

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal lock, 5/16 inch, seat without swivel

4шт.

33

A45576

BOOT

COVER - suspension unit, seat without swivel

1шт.

34

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

- plastic round head, 1/4 hole size x 7/8 inch head dia., seat without swivel

24шт.

35

N6856

DECAL

- instructions, ride, seat without swivel

1шт.

1987124C1

CUSHION, SEAT

KIT - seat cushion, Includes: Ref. 11, 12 and 18, seat without swivel

1шт.
