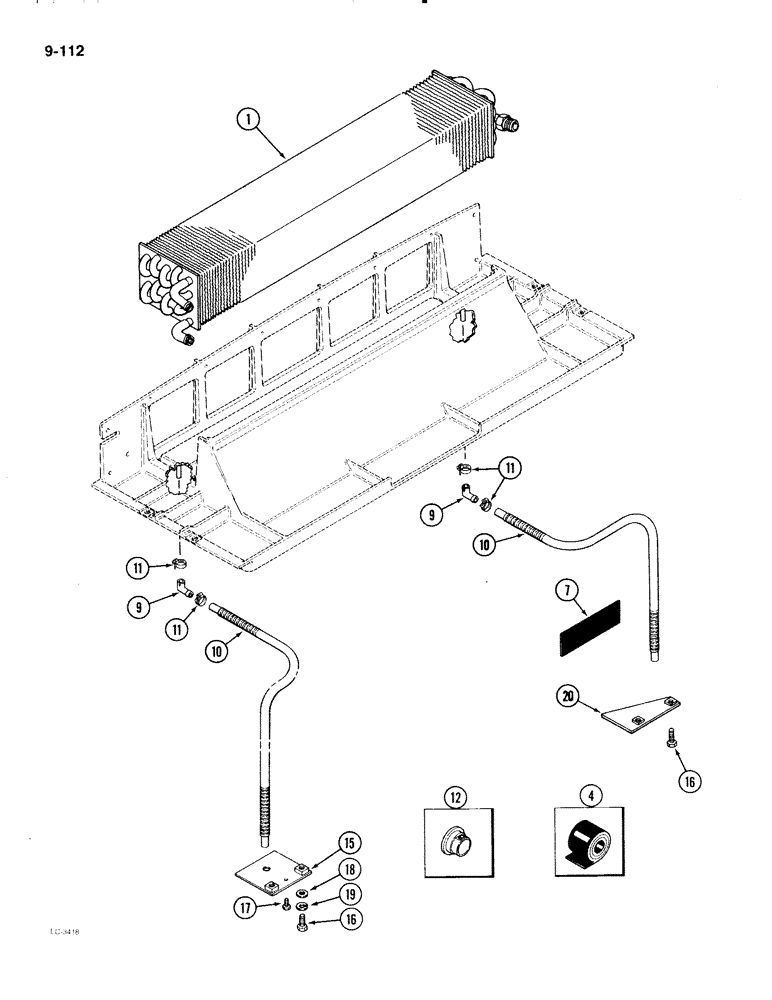

Запчасти Case IH 2096 (9-112) - AIR CONDITIONING EVAPORATION DRAIN (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CORE - heater and air conditioning (See Figure 9-110)

1шт.

4

345-37

TAPE

- cork, insulating, 1/8 x 2-1/2 x 12 inch

1шт.

7

345-38

TAPE - duct

1шт.

9

F66183

ELBOW

- 90 degree, drain hose

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - drain, corrugated, 90 inch (Cut from F64508)

2шт.

10

F64508

HOSE,0.43" ID x 100' Bulk

- corrugated 0.43" ID x 100' Bulk

1шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj. #4, 0.25/0.62 Type F Worm

4шт.

12

F64504

BUSHING

- post, hose

2шт.

15

F98277

PLATE ASSY.

PLATE - hose support

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

276-1468

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW - self-tapping, hex head, No. 12 NC x 1/2 inch

4шт.

18

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

F97423

PLATE

- hose support

1шт.
