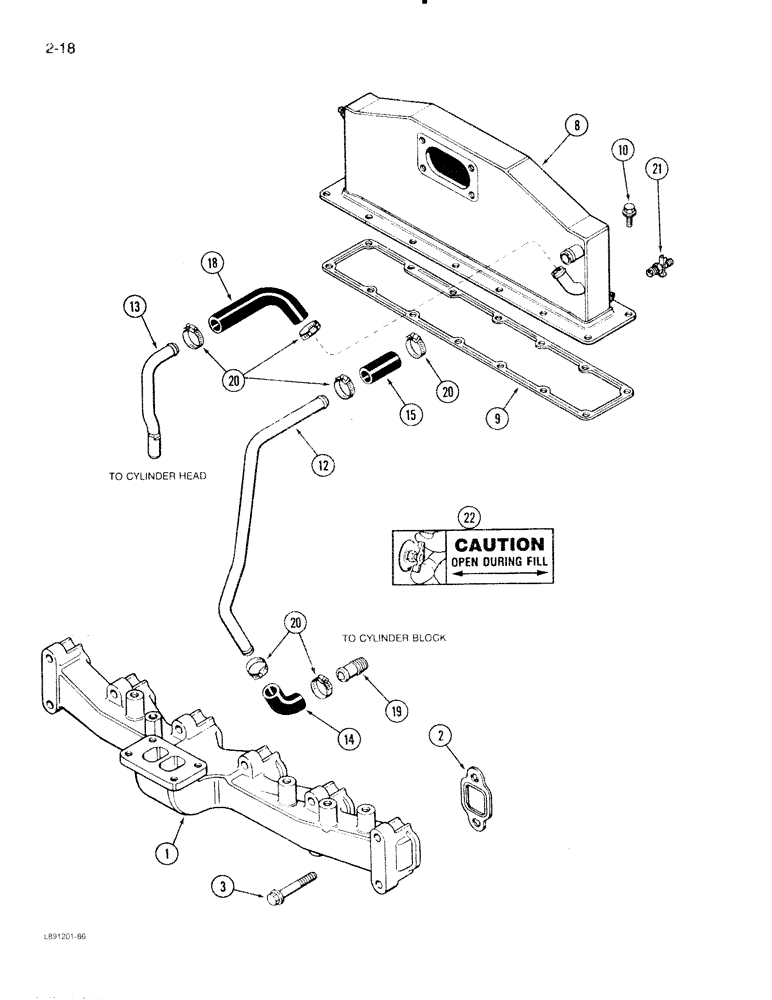

Запчасти Case IH 2096 (2-018) - MANIFOLDS, 6TA-590 ENGINE (02) - ENGINE

1

J901683

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 65 mm, class 10.9, exhaust

12шт.

8

J910282

COOLER ASSY.

AFTERCOOLER ASSEMBLY - intake, new

1шт.

9

J914029

GASKET

- intake manifold (Replaces J907036), aftercooler

1шт.

10

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

BOLT - hex flange, 8 x 16 mm (Replaces J903331), intake aftercooler

16шт.

12

J907168

TUBE

- supply, aftercooler, intake

1шт.

13

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

- drain, aftercooler, intake

1шт.

14

J917793

HOSE

Block to Supply Tube (Replaces J903391), Intake Aftercooler

1шт.

15

J917791

HOSE

- supply tube to aftercooler (Replaces J907169), intake

1шт.

18

J917792

HOSE,19.05 mm ID x 114.60 mm

Aftercooler to Drain Tube (Replaces J903234), Intake 19.05 mm ID x 114.60 mm

1шт.

19

J907167

SPLINED COUPLING

COUPLING - supply hose, intake aftercooler

1шт.

20

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - adj, 11/16 - 1-1/4 inch dia., intake aftercooler

6шт.

21

J909394

COCK, DRAIN

VALVE - drain, intake aftercooler

1шт.

22

J910778

DECAL

- fill, engine, intake aftercooler

1шт.
