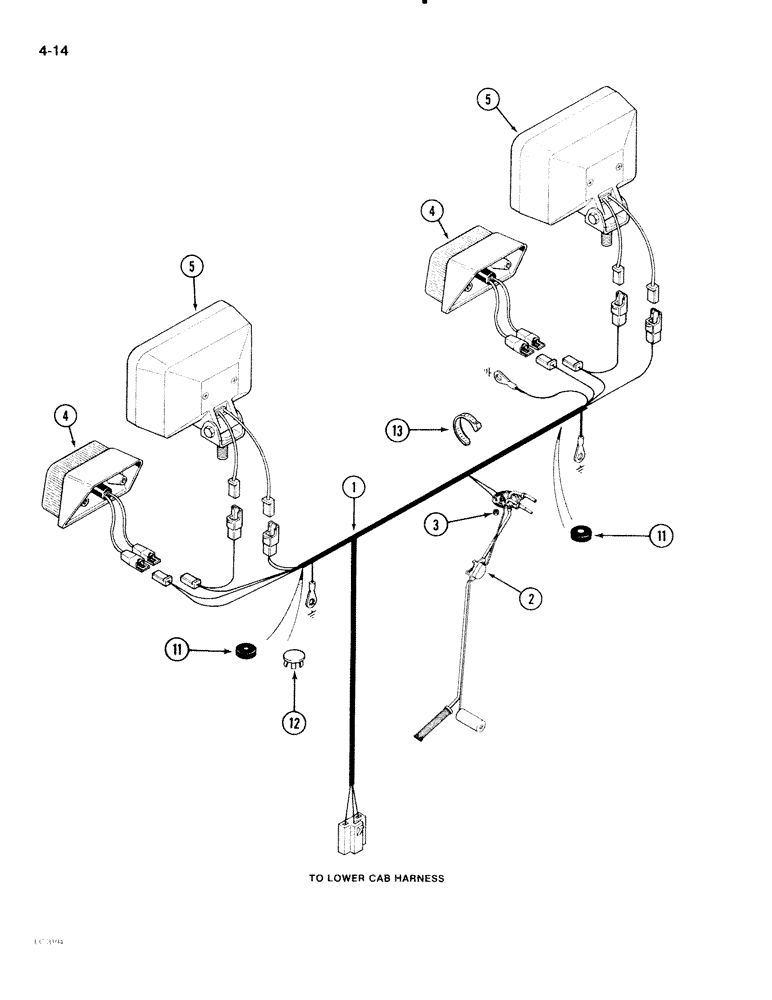

Запчасти Case IH 2096 (4-014) - REAR COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

1

A167264

HARNESS

- rear lights and components

1шт.

2

A161769

TRANSMITTER

UNIT - sender, fuel level (See Figure 3-012)

1шт.

3

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

4

A143925

LAMP

LIGHT - tail, rear fender (See Figure 4-050)

2шт.

5

REF

INSTRUCTION

LIGHT - rear flood (See Figure 4-052)

2шт.

11

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- rear flood light cables

2шт.

12

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2 inch (Fuel tank cover)

1шт.

13

L76747

STRAP

- tie, nylon, 8 inch (Rear light cables)

2шт.
