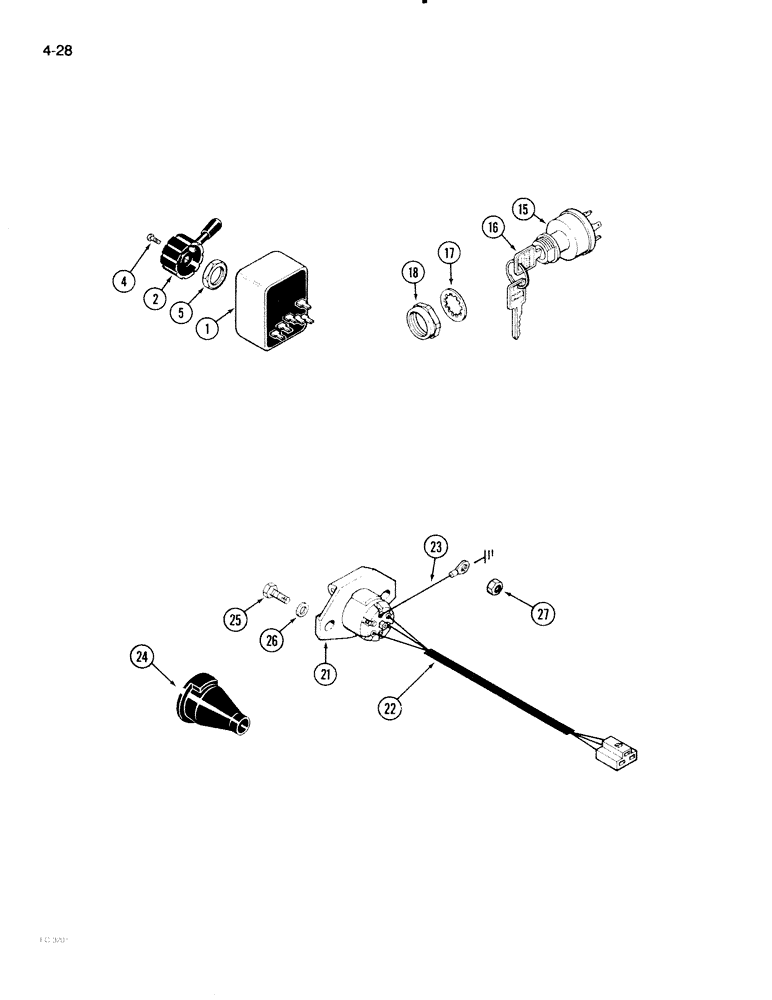

Запчасти Case IH 2096 (4-028) - ELECTRICAL EQUIPMENT MOUNTING (04) - ELECTRICAL SYSTEMS

1536292C1

KIT

- flasher unit, combination light switch, Includes: Ref. 1 - 5

1шт.

1

A77184

SWITCH

- combination light, turn signal and flasher

1шт.

2

A177140

KNOB

- combination light switch

1шт.

4

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

- machine, pan head slotted, No. 5 NC x 3/8 inch, combination light switch

1шт.

5

131-428

LOCK NUT,PAL, 3/4"-20

NUT - self-locking, 3/4 inch super fine threads, combination light switch

1шт.

15

A77312

SWITCH

- ignition (Replaces L61053)

1шт.

16

A77313

SET OF 2 KEYS

KEY - ignition switch (Set of 2)

1шт.

17

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - internal tooth lock, 1 inch, ignition switch

1шт.

18

A145855

NUT

- mounting, ignition switch

1шт.

121646C1

TERMINAL CONNECTOR,Female

SOCKET - 7 pin, auxiliary electrical outlet (Replaces A139762), Includes: Ref. 21 - 24

1шт.

21

A145795

CONNECTOR, ELEC

CONNECTOR - socket, 7 pin, auxiliary electrical outlet

1шт.

22

A177485

HARNESS

- auxiliary electrical outlet

1шт.

23

A163117

ELECTRICAL WIRE

CABLE - ground, auxiliary electrical outlet

1шт.

24

A169283

BOOT

- protection, auxiliary electrical outlet

1шт.

25

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch, auxiliary electrical outlet

2шт.

26

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Auxiliary electrical outlet

2шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Auxiliary electrical outlet

1шт.
