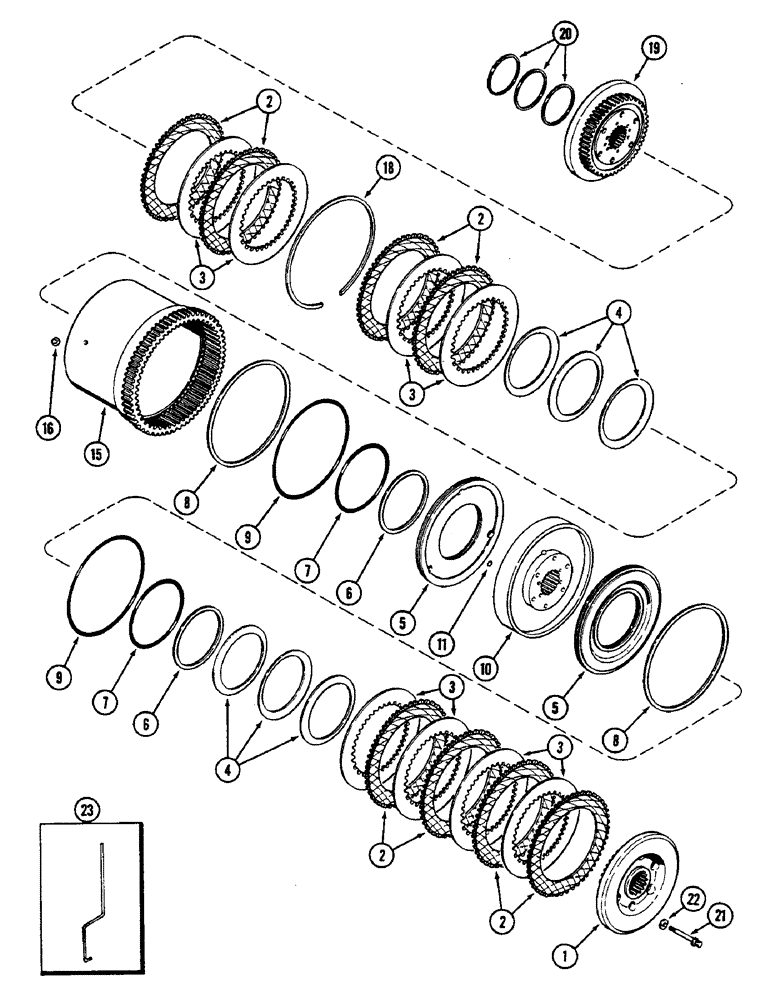

Запчасти Case IH 2290 (6-240) - POWER SHIFT TRANSMISSION, (C2) AND (C3) CLUTCHES (06) - POWER TRAIN

1

A142245

HUB

- (C2) clutch

1шт.

2

A61981

PLATE

- clutch, sintered

8шт.

3

A155461

PLATE

- clutch (Replaces A155276)

8шт.

4

A58094

SPRING

- clutch return

6шт.

5

A146670

PISTON

- (C2) and (C3)

2шт.

6

A146683

RING

- seal, internal, 4-15/32 inch ID (114 MM)

2шт.

7

A150754

O-RING,4.718" ID x 0.107"

RING - internal seal, 11/16 inch ID (119 MM)

2шт.

8

A146682

RING

- seal, external, 8-9/32 inch OD (210 MM)

2шт.

9

A150753

O-RING,7.84" ID x 0.107"

RING - external seal, 7-7/8 inch OD (200 MM)

2шт.

10

A148688

CARRIER

- (C2) and (C3)

1шт.

11

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - 19/64 x 7/16 x 1/16 inch (8 x 11 x 2 MM)

4шт.

15

A63101

GEAR

- ring

1шт.

16

A58413

BUTTON

BEARING - button, planetary ring gear

3шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, clutch retaining ring gear

1шт.

19

A142246

HUB,31T Internal / 72T External

- (C3) clutch

1шт.

20

A58384

RING

- oil distributor piston

3шт.

21

A63099

12 PT SCREW,Ferry, 3/8" - 16 x 3", Gr 8

SCREW - hub retaining (3/8 x 3" )

6шт.

22

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- 7/16 x 3/4 x 1/32 inch (11 x 19 x 1 MM)

6шт.

23

A43110

TOOL

HOLDER - clutch plate (Service tool)

2шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: ref. nos. 6, 7, 8, 9 and 11 on pages 6-236 and 6-240)

1шт.
