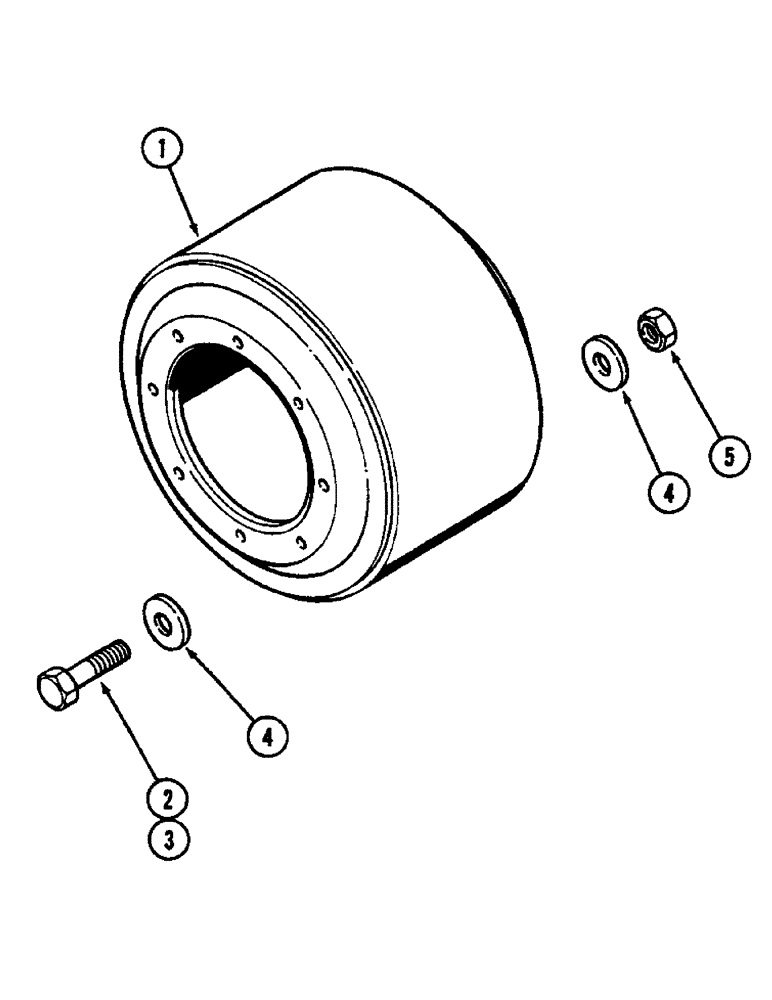

Запчасти Case IH 2290 (6-314) - OUTER DUAL WHEEL SPACER (06) - POWER TRAIN

1

A149059

BUSHING

SPACER - outer dual wheel

2шт.

2

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex, 3/4 NC x 3-1/4 inch (Grade 8) (With cast wheel)

16шт.

3

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch (Grade 8) (With cast wheel)

16шт.

4

D31328

WASHER

- 49/64 x 1-5/8 x 1/4 inch (19 x 41 x 6 MM)

32шт.

5

25-1012

NUT,3/4"-10, G5

16шт.
