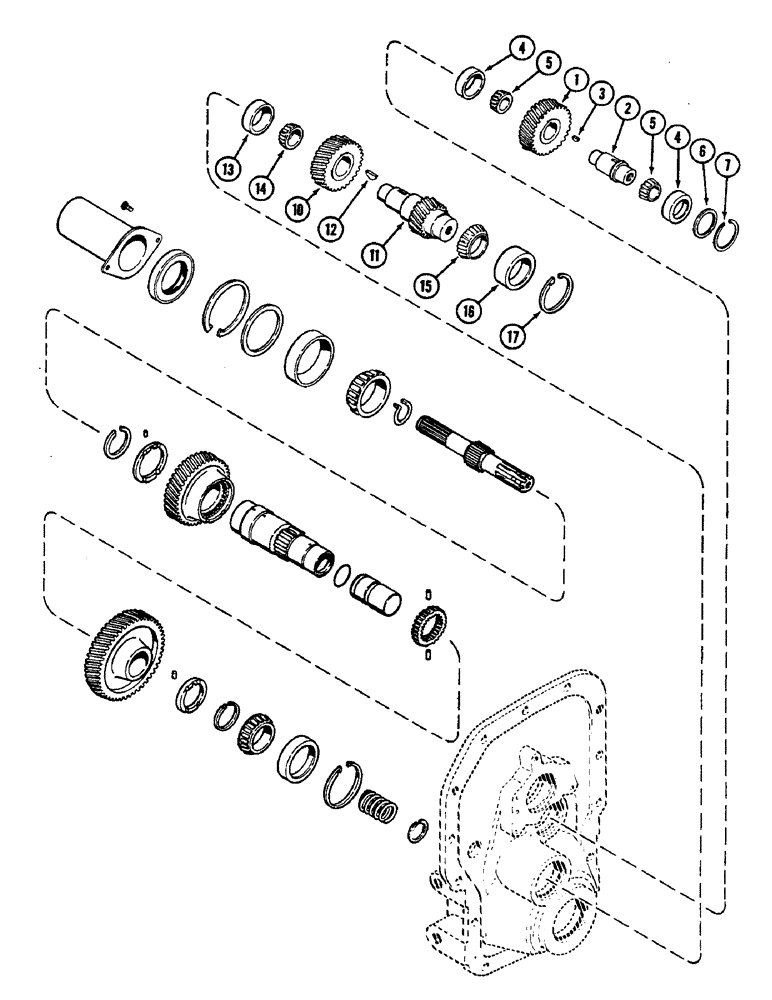

Запчасти Case IH 2290 (6-326) - PTO IDLER GEARS AND SHAFTS, DUAL SPEED, 540, 1000 RPM (06) - POWER TRAIN

1

A150952

GEAR

- idler, first (29 teeth)

1шт.

2

A142872

SHAFT

- first idler gear

1шт.

3

126-115

WOODRUFF KEY,#8, 5/32" x 3/4", HT

1шт.

4

D31948

BEARING CUP,2.5312" OD x 0.6563"

CUP - bearing, first idler, 2-17/32 inch OD (64 MM)

2шт.

5

D31949

ROLLER BEARING,30.175 mm ID x 21.636 mm

CONE - bearing, first idler, 1-3/16 inch ID (30 MM)

2шт.

6

A151692

BUSHING

SPACER - first idler gear, 0.045 inch (1.16 MM)

1шт.

6

A151691

BUSHING

SPACER - first idler gear, 0.050 inch (1.27 MM)

1шт.

6

A151346

BUSHING

SPACER - first idler gear, 0.055 inch (1.39 MM)

1шт.

6

A151345

BUSHING

SPACER - first idler gear, 0.060 inch (1.52 MM)

1шт.

6

A151344

BUSHING

SPACER - first idler gear, 0.065 inch (1.65 MM)

1шт.

6

A151343

BUSHING

SPACER - first idler gear, 0.070 inch (1.78 MM)

1шт.

6

A151342

BUSHING

SPACER - first idler gear, 0.075 inch (1.93 MM)

1шт.

6

A151341

BUSHING

SPACER - first idler gear, 0.080 inch (2.03 MM)

1шт.

7

A140746

SNAP RING,#253, 2.706", Int

RING - snap, first idler gear

1шт.

10

A155613

GEAR

- idler, second (29 teeth) (Transmission serial no. 10270783 and after)

1шт.

10

A150953

GEAR

- idler, second (29 teeth) (Prior to transmission serial no. 10270783) (Order A155613, A155612 and 126-124)

1шт.

11

A155612

SHAFT

- second idler gear (Transmission serial no. 10270783 and after)

1шт.

11

A150021

SHAFT

- second idler gear (Prior to transmission serial no. 10270783) (Order A155613, A155612 and 126-124)

1шт.

12

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

(Transmission S/N 10270783 and after) #15, 1/4" x 1", HT

1шт.

12

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

(Prior to transmission S/N 10270783) #13, 3/16" x 1", HT

1шт.

13

A27631

CUP

- outer bearing, second idler, 2-7/8 inch OD (73 MM)

1шт.

14

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing, second idler, 1-3/8 inch ID (35 MM)

1шт.

15

R32217

ROLLER BEARING,50 mm ID x 21.5 mm

CONE - outer bearing, second idler, 1-31/32 inch ID (50 MM)

1шт.

16

R32216

BEARING CUP,82 mm OD x 17 mm

CUP - inner bearing, second idler, 3-15/64 inch OD (82 MM)

1шт.

17

A151678

RING

- snap, spacer, 0.070 inch (1.78 MM)

1шт.

17

A151677

RING

- snap, spacer, 0.076 inch (1.90 MM)

1шт.

17

A151676

RING

- snap, spacer, 0.081 inch (2.04 MM)

1шт.

17

A151675

RING

- snap, spacer, 0.086 inch (2.17 MM)

1шт.

17

A152246

RING

- snap, spacer, 0.091 inch (2.31 MM)

1шт.

17

A152245

RING

- snap, spacer, 0.096 inch (2.44 MM)

1шт.

17

A152244

RING

- snap, spacer, 0.101 inch (2.57 MM)

1шт.
