(9-608) - CAB, HEADLINER NOISE PADS WITH RADIO, PRIOR TO CAB SERIAL NUMBER 12045751

Запчасти Case IH 2290 (9-608) - CAB, HEADLINER NOISE PADS WITH RADIO, PRIOR TO CAB SERIAL NUMBER 12045751 (09) - CHASSIS/ATTACHMENTS

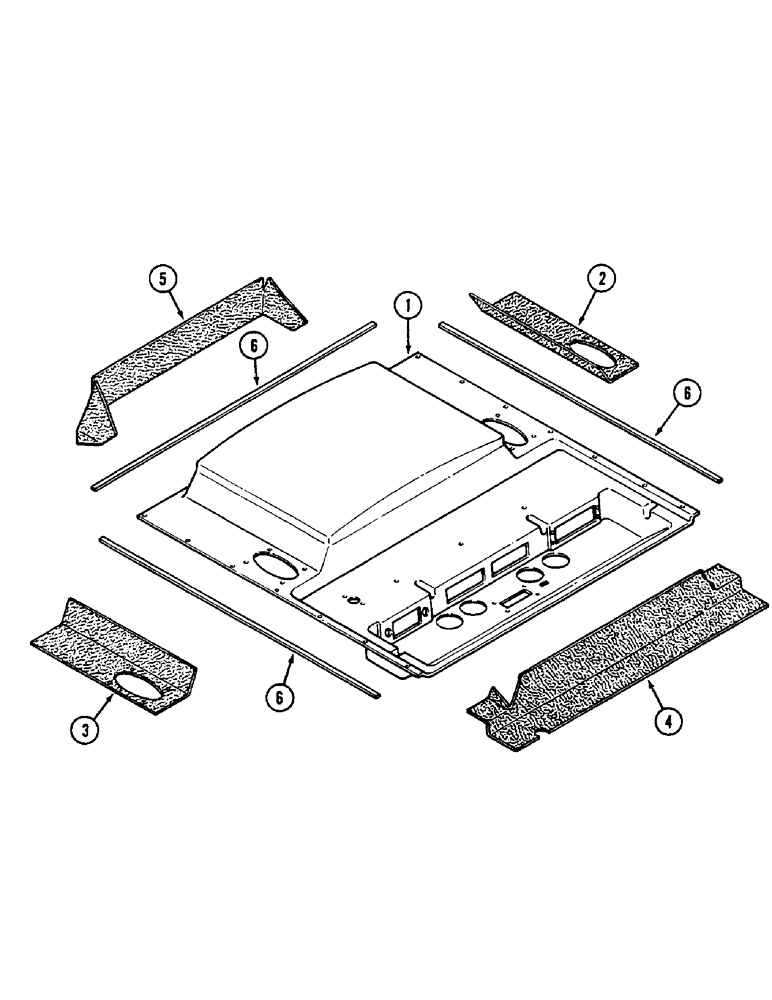

Схема запчастей Case IH 2290 - (9-608) - CAB, HEADLINER NOISE PADS WITH RADIO, PRIOR TO CAB SERIAL NUMBER 12045751 (09) - CHASSIS/ATTACHMENTS
5
6
6
3
1
6
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEADLINER - cab (See page 9-518)

1шт.

2

F64245

PAD

- noise damping, left

1шт.

3

F64246

PAD

- noise damping, right

1шт.

4

F64477

PAD

- noise damping, front

1шт.

5

F64248

PAD

- damping, rear

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer edge, 44 inch (1118 MM) (Order F64119)

3шт.

F64119

SEALING STRIP

SEAL - 100 foot roll (30 M)

1шт.
