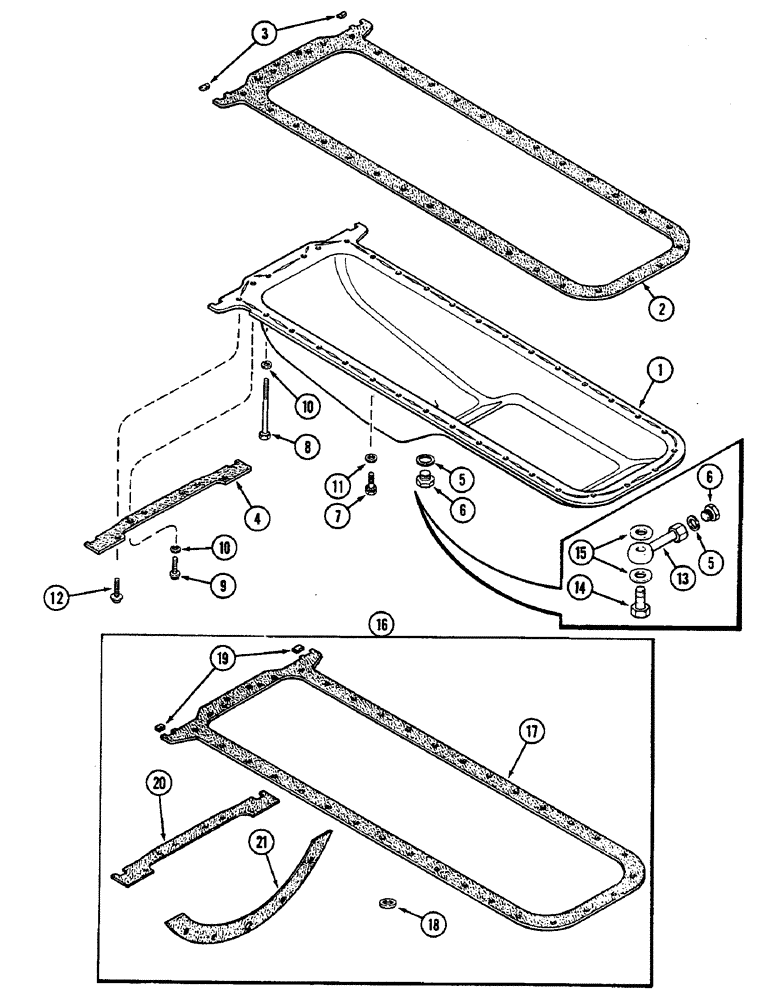

Запчасти Case IH 2290 (2-048) - OIL PAN, 504BDT DIESEL ENGINE (02) - ENGINE

1

A148753

PAN

- oil (Order A166236)

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - pan to block (Order A152479 below)

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - corner (Order A152424 below)

2шт.

4

NSS

NOT SOLD SEPARAT

GASKET - seal plate (Order A152424 below)

1шт.

5

A27968

RING

- copper, drain plug

1шт.

6

A34826

PLUG,7/8" - 18 ORB

- drain

1шт.

7

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT ASSEMBLY - 3/8 x 7/8 inch, with lock washer

26шт.

8

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

2шт.

9

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - Ferry, 3/8 NC x 1-1/4 inch

2шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

26шт.

12

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

- hex Sems, 3/8 NC x 1-1/2 inch

2шт.

13

A164727

TUBE

- oil drain, MFD Tractor (Replaces A163203)

1шт.

14

A164733

BOLT

- oil drain, MFD Tractor (Replaces A163204)

1шт.

15

A27968

RING

- drain bolt, MFD Tractor (Replaces A163205)

2шт.

16

A152479

GASKET KIT

KIT - gasket, oil pan, Includes: Ref. 17-21 and kit

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET - pan to block (Order A152479), oil pan gasket kit

1шт.

18

A27968

RING

- drain plug, oil pan gasket kit

1шт.

A152424

GASKET

KIT - rear seal (Used when tractor is split and oil pan is not removed), Includes: Ref. 19-21

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - corner (Order A152424), oil pan and gasket kit

2шт.

20

NSS

NOT SOLD SEPARAT

GASKET - flywheel cover (Order A152424), oil pan and gasket kit

1шт.

21

A57966

GASKET

- housing, oil pan and gasket kit

1шт.

#21 a57966 IS LOWER GASKET USED ON FLYWHEEL HOUSING ON A 504BDT ENGINE NO UPPER GASKET- USE B17428 GASKET ELIM.

1шт.
