(5-144) - FRONT AXLE HOUSING AND TIE ROD, MFD TRACTORS, CARRARO AXLE

Запчасти Case IH 2294 (5-144) - FRONT AXLE HOUSING AND TIE ROD, MFD TRACTORS, CARRARO AXLE (05) - STEERING

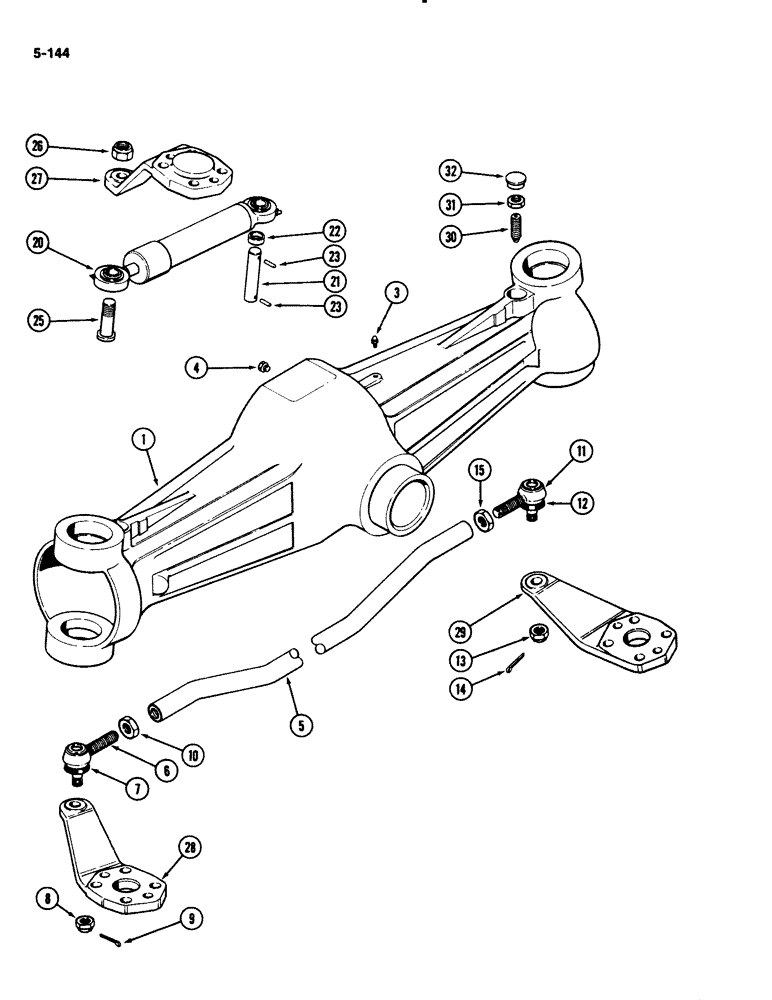

Схема запчастей Case IH 2294 - (5-144) - FRONT AXLE HOUSING AND TIE ROD, MFD TRACTORS, CARRARO AXLE (05) - STEERING
13
23
21
29
5
26
4
14
28
1
8
6
23
9
20
15
12
10
11
31
30
32
25
27
22
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A168841

SHAFT

AXLE ASSEMBLY - front (Carraro No. 113114), Includes: Ref. 1 - 32, Start Serial: 16239354

1шт.

A156672

SHAFT

AXLE ASSEMBLY - MFD front (Carraro No. 113114) (Order A168841), Includes: Ref. 1 - 32, Serial Range: -1239354

1шт.

1

A48020

HOUSING

- Front axle (Carraro No. 107374)

1шт.

3

K965231

BREATHER

- axle housing (Carraro No. 104988)

1шт.

4

K965263

PLUG

- housing drain (Carraro No. 92269)

1шт.

5

A168736

ROD

TIE ROD - MFD front axle (Carraro No. 118238) (Replaces A48124)

1шт.

6

A48125

END

ASSEMBLY - tie rod, right (Carraro No. 107620), Includes: Ref. 7 - 9

1шт.

7

A48164

COVER

BOOT - tie rod end (Carraro No. 43965)

1шт.

8

A48163

NUT

- tie rod (Carraro No. 22358)

1шт.

9

632-632

COTTER PIN,M3.2 x 32

PIN - cotter, nut retaining (Carraro No. 25567)

1шт.

10

A48126

NUT

- tie rod, right (Carraro No. 107759)

1шт.

11

A48127

END

ASSEMBLY - tie rod, left (Carraro No. 107619), Includes: Ref. 12 - 14

1шт.

12

A48164

COVER

BOOT - tie rod end (Carraro No. 43965)

1шт.

13

A48163

NUT

- tie rod (Carraro No. 22358)

1шт.

14

632-632

COTTER PIN,M3.2 x 32

PIN - cotter, nut retaining (Carraro No. 25567)

1шт.

15

A48128

NUT

- tie rod, left (Carraro No. 107760)

1шт.

20

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-134)

2шт.

21

A48120

PIN

- cylinder mounting (Carraro No. 107762)

2шт.

22

K395108

BUSHING

SPACER - mounting pin (Carraro No. 114557) (Replaces A48121)

2шт.

23

A48166

PIN

- upper spirol, M8 x 45 mm (Carraro No. 24447)

4шт.

25

A48122

PIN

- cylinder mounting (Carraro No. 107761)

2шт.

26

A163188

NUT

- hex lock, mounting pin retaining, M22 x 1.5 (Carraro No. 22442)

2шт.

27

A48052

ARM

- steering, upper (Carraro No. 107742)

2шт.

28

A182245

ARM

- steering, lower right (Carraro No. 118329) (Replaces A48053)

1шт.

When A48124, A48053 and A48054 is ordered, supply A168736, A182245 and A168737 for A156672 axle assembly.

1шт.

29

A168737

ARM

- steering, lower left (Carraro No. 118330) (Replaces A48054)

1шт.

When A48124, A48053 and A48054 is ordered, supply A168736, A182245 and A168737 for A156672 axle assembly.

1шт.

30

A48042

ADJUSTMENT SCREW,M18 x 2.5 x 68mm

SCREW - housing bearing adjusting (Carraro No. 107719)

4шт.

31

K956932

JAM NUT

- hex jam, M18 (Carraro No. 22132)

4шт.

32

A48043

PLUG

- adjusting screw hole (Carraro No. 107765)

4шт.
