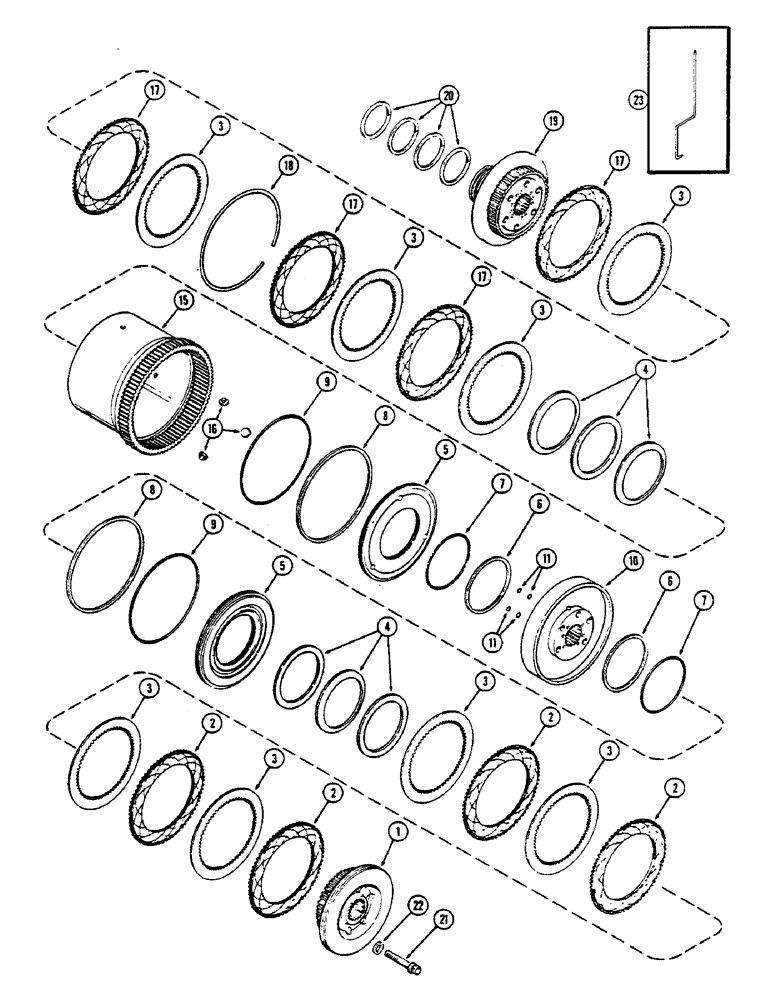

Запчасти Case IH 2390 (6-188) - CLUTCH, (C2) AND (C3) CLUTCHES (06) - POWER TRAIN

1

A153336

HUB

- (C2) clutch

1шт.

2

A61981

PLATE

- clutch, sintered

4шт.

3

A155461

PLATE

- clutch, steel

8шт.

4

A58094

SPRING

- clutch return

6шт.

5

A146670

PISTON

- (C2) and (C3)

2шт.

6

A146683

RING

- seal, internal, 4-15/32" ID x 7/64" square (113.54 MM x 2.79 MM)

2шт.

Part of Seal Kit, P/N A46286

1шт.

7

A150754

O-RING,4.718" ID x 0.107"

RING - seal, internal, 4-11/16" ID x 3/32" width (119.13 MM x 2.29 MM)

2шт.

Part of Seal Kit, P/N A46286

1шт.

8

A146682

RING

- seal, external, 8-9/32" OD x 7/64" square (210.31 MM x 2.79 MM)

2шт.

Part of Seal Kit, P/N A46286

1шт.

9

A150753

O-RING,7.84" ID x 0.107"

RING - seal, external, 7-7/8" OD x 3/32" width (200.15 MM x 2.29 MM)

2шт.

Part of Seal Kit, P/N A46286

1шт.

10

A150105

CARRIER

- (C2) and (C3) (Replaces A153297)

1шт.

11

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - 19/64 x 7/16 x 1/16" (7.62 MM x 11.18 MM x 1.52 MM)

4шт.

Part of Seal Kit, P/N A46286

1шт.

15

A63101

GEAR

- ring

1шт.

16

A58413

BUTTON

BEARING - button, planetary ring gear

3шт.

17

A61981

PLATE

- clutch, sintered

4шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, clutch retaining ring gear

1шт.

19

A153337

HUB

- (C3) clutch

1шт.

20

A58384

RING

- oil distributor piston

4шт.

21

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 1/2 x 3-1/4" NC Ferry head

6шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- 7/16 x 3/4 x 1/32" (11.18 x 19.05 x 0.76 MM)

6шт.

23

A43110

TOOL

HOLDER - clutch plate (Service tool)

2шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: ref. nos. 6, 7, 8, 9 and 11 on Figure 6-184

1шт.
