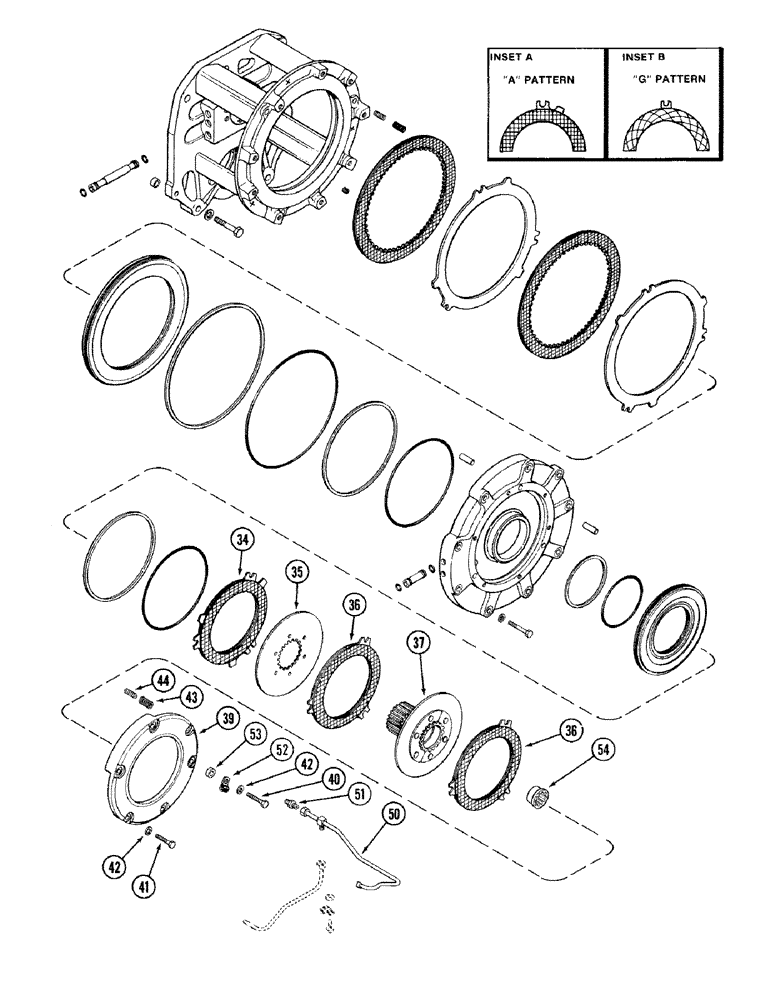

Запчасти Case IH 2394 (6-032) - TRANSMISSION, (C1) AND (C4) CLUTCHES, PRIOR TO TRANSMISSION SERIAL NO. 16260432 (CONTINUED) (06) - POWER TRAIN

34

A142361

PLATE

- (C1) clutch, with tabs ("A" type groove pattern, See Inset A) (Order A168484)

1шт.

"A" and "G" groove patterns are NOT to be mixed. Ref. 34 and 36 must have the same groove pattern. Order parts carefully.

1шт.

34

A168484

PLATE

- (C1) clutch with tabs ("G") type groove pattern, See Inset B)

1шт.

"A" and "G" groove patterns are NOT to be mixed. Ref. 34 and 36 must have the same groove pattern. Order parts carefully.

1шт.

35

A182507

PLATE

- steel, (C2) clutch (replaces A152112)

1шт.

36

A142360

PLATE

- (C1) clutch, without tabs ("A" type groove pattern, See Inset A) (Order A168483)

2шт.

"A" and "G" groove patterns are NOT to be mixed. Ref. 34 and 36 must have the same groove pattern. Order parts carefully.

1шт.

36

A168483

PLATE

- (C1) clutch, without tabs ("G" type groove pattern, See Inset B)

2шт.

"A" and "G" groove patterns are NOT to be mixed. Ref. 34 and 36 must have the same groove pattern. Order parts carefully.

1шт.

37

A152113

PINION

PLATE ASSEMBLY - sun reaction, (C1) clutch

1шт.

39

A142240

PLATE

- (C1) reaction

1шт.

40

113-2240

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

1шт.

41

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

42

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

6шт.

43

A62606

SPRING

- return, (C1) clutch

3шт.

44

A62607

SPRING

- return, (C1) clutch

3шт.

Prior to transmission serial no. 16224622.

1шт.

44

A142613

SPRING

- return, (C1) clutch

3шт.

Transmission serial no. 16224622 and after.

1шт.

50

A150622

TUBE

- lubrication, (C1) clutch (12 speed transmission)

1шт.

51

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

1шт.

52

49845

CLAMP

- tube

1шт.

53

R12644

BUSHING

SPACER - clamp

1шт.

54

A76482

BUSHING,20T

- input shaft

1шт.
