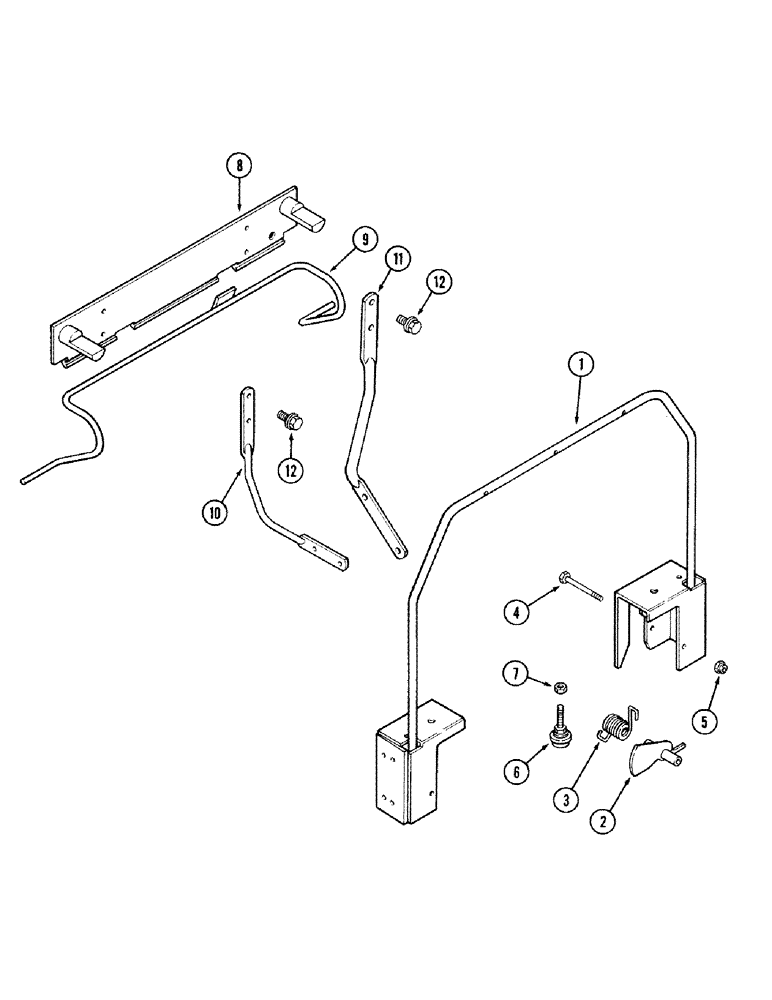

Запчасти Case IH 2394 (9-028) - HOOD LATCH KIT, TRACTORS WITH LOADER (09) - CHASSIS/ATTACHMENTS

A67593

KIT - hood latch (Machinery Item)(Order components), Includes: Ref. 1 - 12

1шт.

1

A147213

HARNESS

BRACE - hood support

1шт.

2

A147728

TRIGGER

- hood release

2шт.

3

1978450C2

SPRING

- torsion, hood lock (Replaces A147730)

2шт.

4

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

2шт.

5

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

6

A145178

WAD

BUMPER - hood stop

2шт.

7

425-105

NUT,5/16"-18, G5

2шт.

8

A147221

SUPPORT

- rear

1шт.

9

A147749

HANDLE

- hood release

1шт.

10

A147218

BRACE

ROD - rear support, hood, right

1шт.

11

A162749

ROD

- rear support, hood, left

1шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex flange, self-locking, 5/16 NC x 3/4 inch

4шт.
