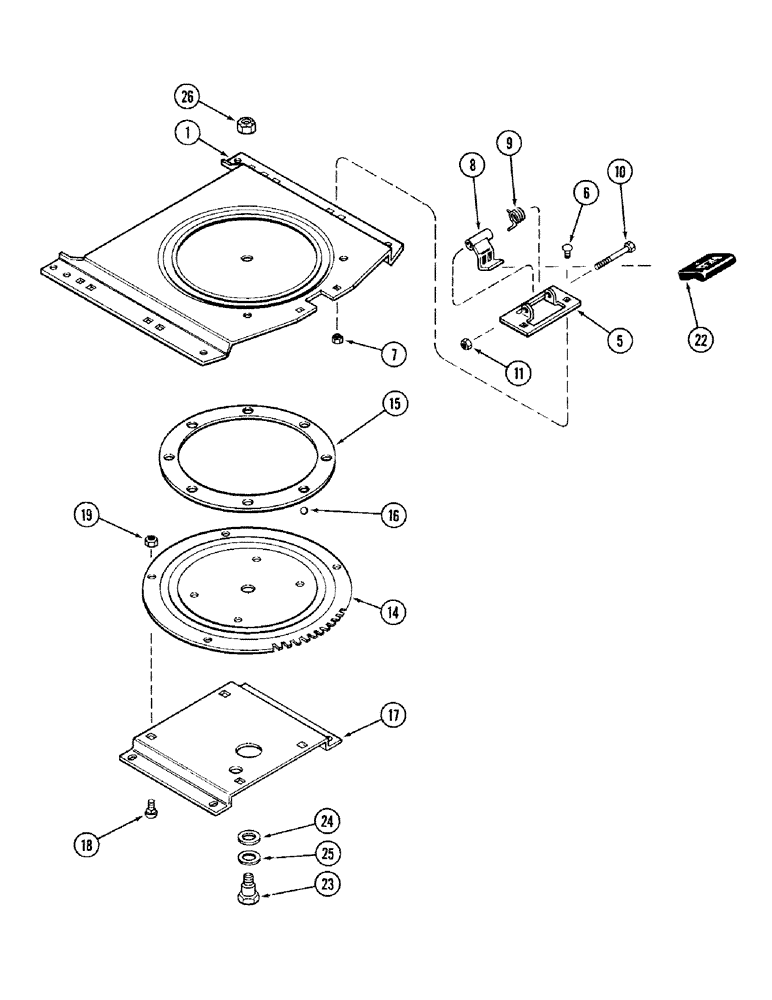

Запчасти Case IH 2394 (9-058) - CLOTH SEAT, AIR/OIL SUSPENSION, PRIOR TO P.I.N. 9938101 (09) - CHASSIS/ATTACHMENTS

A176375

SEAT

ASSEMBLY - air/oil suspension (Order seat 1340261C2 and channel 1975275C1)(See Figure 9-074), Includes: Ref. 1 - 26 and isolator assembly

1шт.

A49525

SEAT

ISOLATOR ASSEMBLY - seat, Includes: Ref. 1 - 26 and swivel assembly

1шт.

A49608

PLATE

SWIVEL ASSEMBLY - seat (Order A49822)(See Figure 9-068), Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - top, swivel

1шт.

5

A49552

BRACKET

- latch, swivel

1шт.

6

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

7

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

8

A49831

LATCH

ASSEMBLY - swivel

1шт.

9

A49554

SPRING

- latch

1шт.

10

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

11

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

1шт.

14

A49556

PLATE

- latch

1шт.

15

A49555

LARGE PLATE

RETAINER - ball

1шт.

16

211-214

BALL,1/2" Dia

- 1/2 inch diameter

8шт.

17

A49557

PLATE

- mounting, swivel

1шт.

18

411-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 2

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

19

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

22

A49612

LEVER ASSY & KNOB

KNOB - latch, swivel

1шт.

23

A49558

BOLT

- shoulder

1шт.

24

A49559

WASHER

- nylon, shoulder bolt

1шт.

25

F15105

WASHER

- thrust

1шт.

26

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, lock, 1/2 inch NC, plated

1шт.
