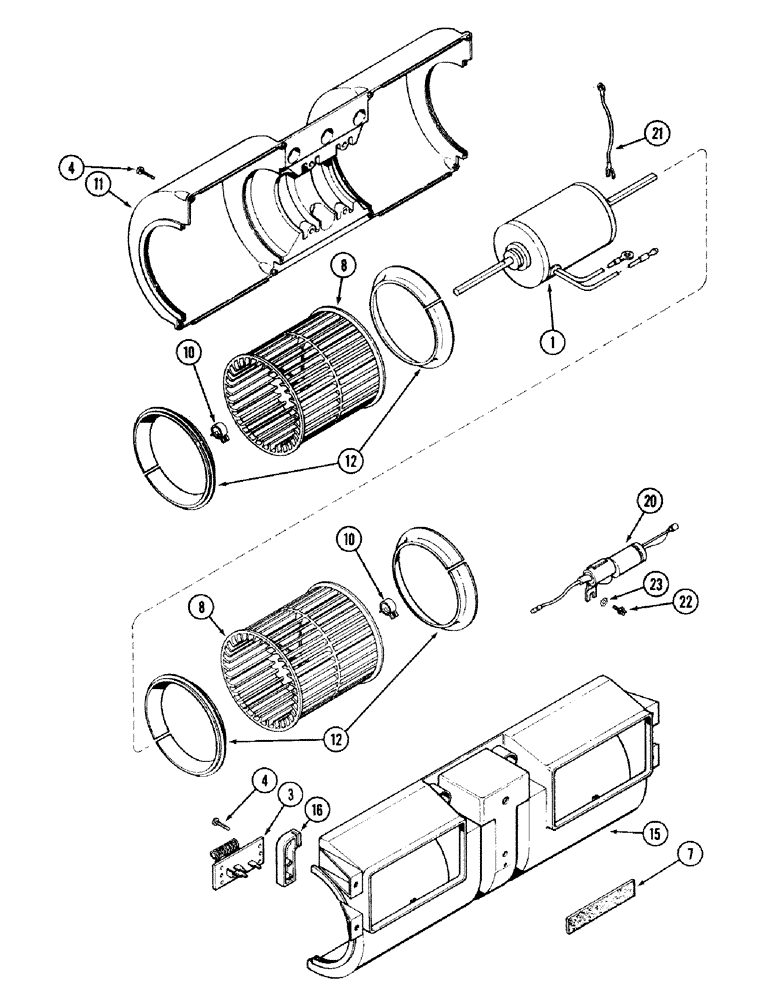

Запчасти Case IH 2394 (9-124) - CAB, BLOWER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

F45196

MOTOR, ELECTRIC

MOTOR - blower (Order F96901)

1шт.

3

F44900

RESISTOR

- blower

1шт.

4

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - self-tapping, pan Phillips, No. 8-16 x 3/4 inch

14шт.

7

F64816

FOAM

SEAL - foam (Order F64119 and, Serial Range: cut-length)

1шт.

8

F64935

BLOWER,Fan

FAN - blower

2шт.

10

F64936

CLAMP

- fan retaining

2шт.

11

F64741

HOUSING

- blower fan

1шт.

12

F64739

RING

- plastic, fan retaining

4шт.

15

F64740

HOUSING

- blower fan

1шт.

16

F66204

BRACKET

- resistor

1шт.

20

F64184

CAPACITOR

- noise (If equipped)

1шт.

21

A180121

ELECTRICAL WIRE

WIRE - ground

1шт.

22

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - slotted hex, NO. 10 x 3/4 inch

1шт.

23

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, Ext-Int Tooth, #10

1шт.
