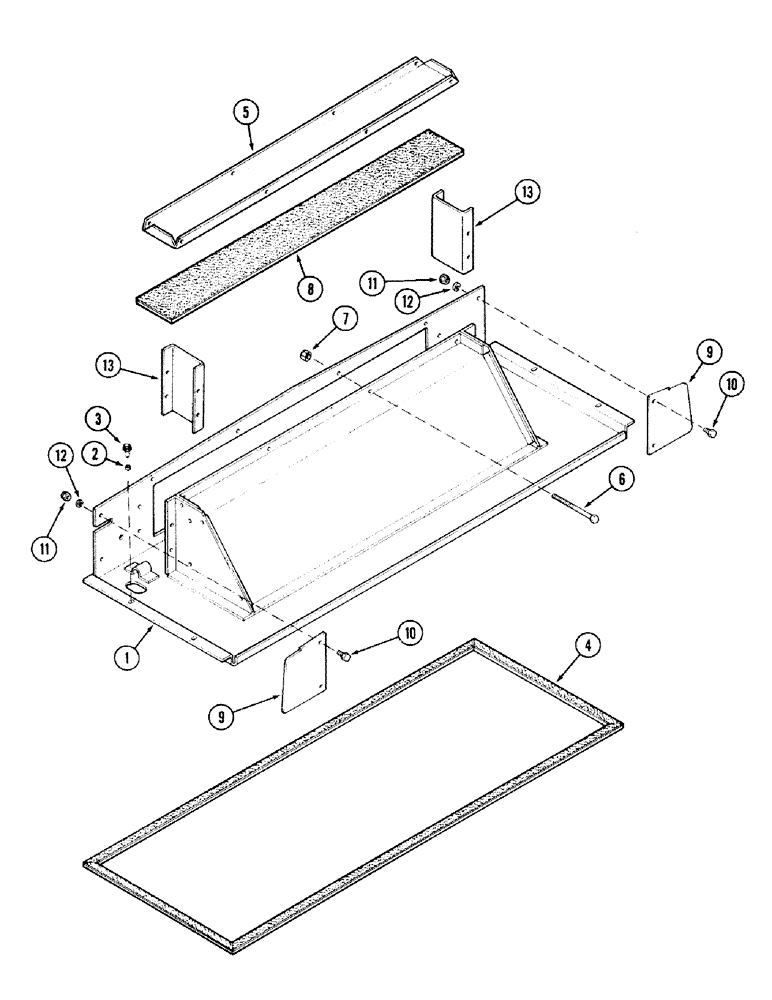

Запчасти Case IH 2394 (9-126) - CAB, PLENUM, PRIOR TO CAB SERIAL NO. 12093701, PRIOR TO EUROPEAN CAB SERIAL NO. 12092344 (09) - CHASSIS/ATTACHMENTS

1

F98278

TUBE

CHANNEL - air passage

1шт.

2

F44834

BUSHING

- nylon

4шт.

3

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch

4шт.

4

NSS

NOT SOLD SEPARAT

SEAL - duct floor, 111-1/2 inch (Order F64119)

1шт.

5

F63841

COVER

- top, air duct

1шт.

6

413-464

BOLT,Hex, 1/4" - 20 x 4", Gr 5

8шт.

7

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

8шт.

8

F63671

SEAL

- top cover

1шт.

9

F63614

PLATE ASSY.

PLATE - end, air duct

2шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, grade 2

4шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, plated

4шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

F64013

PLATE ASSY.

PLATE - end, air duct filler (If equipped)

2шт.
