(8-070) - 1986843C1 REMOTE HYD. VALVE, 3 SECT, W/LOAD CHECK ON 1ST & 2ND SECT, TRANS. S/N 16283224 & AFTER

Запчасти Case IH 2594 (8-070) - 1986843C1 REMOTE HYD. VALVE, 3 SECT, W/LOAD CHECK ON 1ST & 2ND SECT, TRANS. S/N 16283224 & AFTER (08) - HYDRAULICS

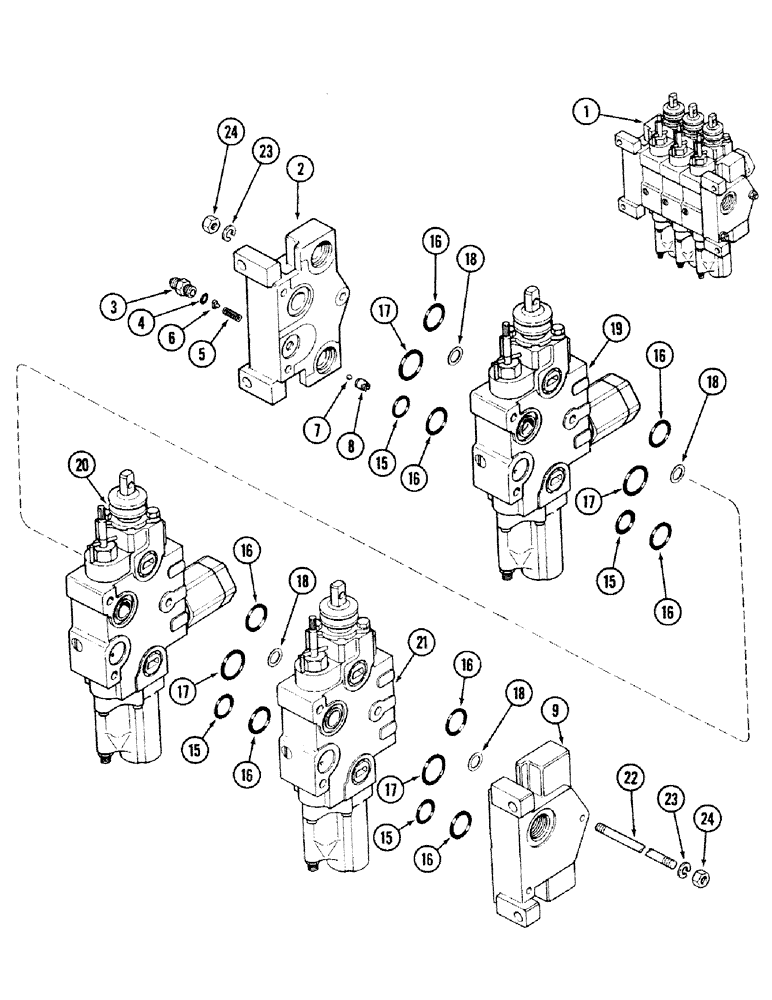

Схема запчастей Case IH 2594 - (8-070) - 1986843C1 REMOTE HYD. VALVE, 3 SECT, W/LOAD CHECK ON 1ST & 2ND SECT, TRANS. S/N 16283224 & AFTER (08) - HYDRAULICS
16
7
23
4
18
15
18
18
2
18
17
24
20
16
24
15
17
16
16
23
3
16
16
16
22
15
21
8
6
15
9
17
1
5
19
16
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1986843C1

VALVE

ASSEMBLY - remote hydraulic (Replaces A185502), Includes: Ref. 2 - 24

1шт.

2

A47169

COVER

- ASSEMBLY - inlet, Includes: Ref. 3 - 8

1шт.

3

A47185

FITTING

- inlet

1шт.

5

A47176

SPRING

- valve

1шт.

6

A47214

RETAINER

- spring

1шт.

7

211-206

BALL,1/4" Dia

- 1/4 inch, grade 50, chrome alloy steel

1шт.

8

A47202

SEAT

- valve

1шт.

9

A52403

BODY

COVER - end

1шт.

A47576

KIT

- valve seal (Order components), Includes: Ref. 15 - 18

4шт.

15

238-6211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

1шт.

16

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

17

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

18

D77566

SHIM,.0030" Thk

Control valve sections .0030" Thk

3шт.

19

REF

INSTRUCTION

BODY ASSEMBLY - remote valve, with load check and priority float (See Figure 8-96)

1шт.

20

REF

INSTRUCTION

BODY ASSEMBLY - remote valve, without load check (See Figure 8-76)

1шт.

22

A147507

STUD

- 3/8 NC x 9-7/8 inch

3шт.

23

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

24

425-106

NUT,3/8"-16, Cl 5

6шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
