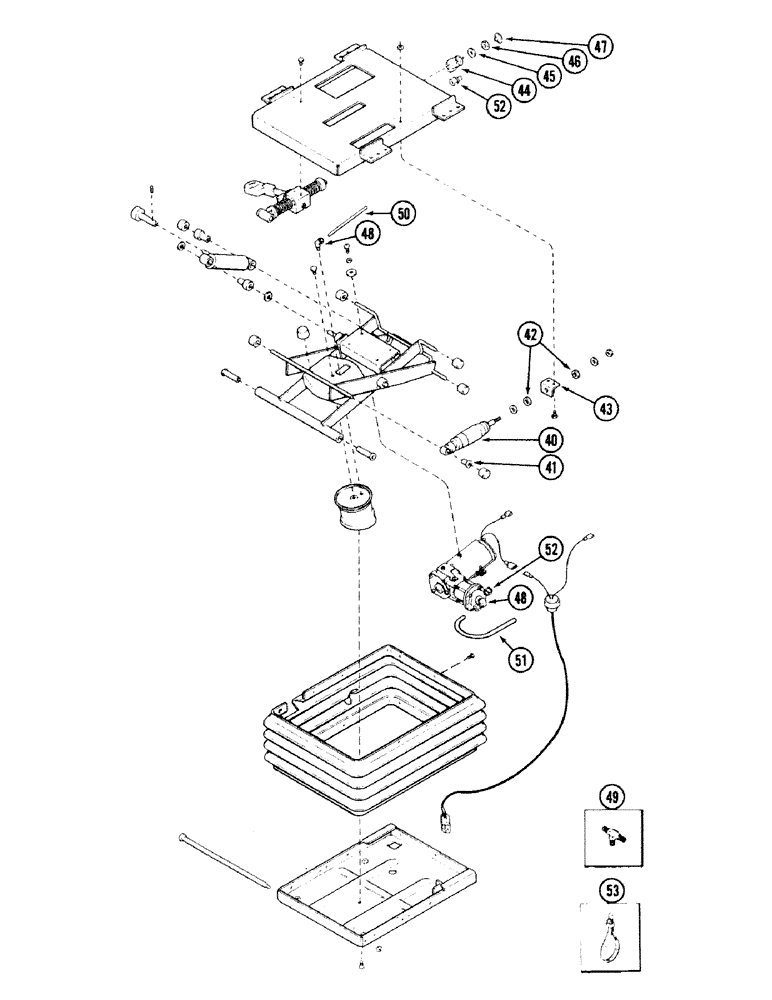

Запчасти Case IH 2594 (9-082) - CLOTH SEAT, AIR SUSPENSION, SUSPENSION, (CONT) (09) - CHASSIS/ATTACHMENTS

1340261C2

SEAT

ASSEMBLY - air suspension, Includes: Ref. 40 - 53 and seat suspension kit and shock absorber kit and Ref. 1 - 33 on Fig. 9-80

1шт.

1990648C3

PACKAGE

KIT - seat suspension, Includes: Ref. 40 - 53 and shock absorber kit and Ref. 1 - 31 on fig. 9-80

1шт.

1990646C2

PACKAGE

KIT - shock absorber (Order components), Includes: Ref. 40 - 43

1шт.

40

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

41

NSS

NOT SOLD SEPARAT

BUSHING - shock absorber

1шт.

42

A49679

BUSHING

- rubber

2шт.

43

1981845C1

ANGLE

- mounting

1шт.

44

1981852C2

IGNITION SWITCH

SWITCH ASSEMBLY - air control, Includes: Ref. 45 - 47

1шт.

45

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

46

NSS

NOT SOLD SEPARAT

NUT - hex, 5/8 inch NF

1шт.

47

NSS

NOT SOLD SEPARAT

KNOB - switch

1шт.

Part of Air Suspension Knob Kit, P/N 1999692C1

1шт.

1990548C3

PACKAGE

KIT - air lines and fittings, Includes: Ref. 48 - 53

1шт.

48

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, 1/4 inch tube x 1/8 NPT

2шт.

49

NSS

NOT SOLD SEPARAT

TEE - 1/4 inch tube x 1/4 inch tube x 1/8 NPT

1шт.

50

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 x 11-5/8 inch

1шт.

51

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 x 28 inch

1шт.

52

NSS

NOT SOLD SEPARAT

ADAPTER - 1/4 inch tube x 1/8 NPT

2шт.

53

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

1999692C1

LEVER ASSY & KNOB

KIT - air suspension knob (Includes Ref. 47 and parts on Figure 9-078 and Figure 9-084)

1шт.
