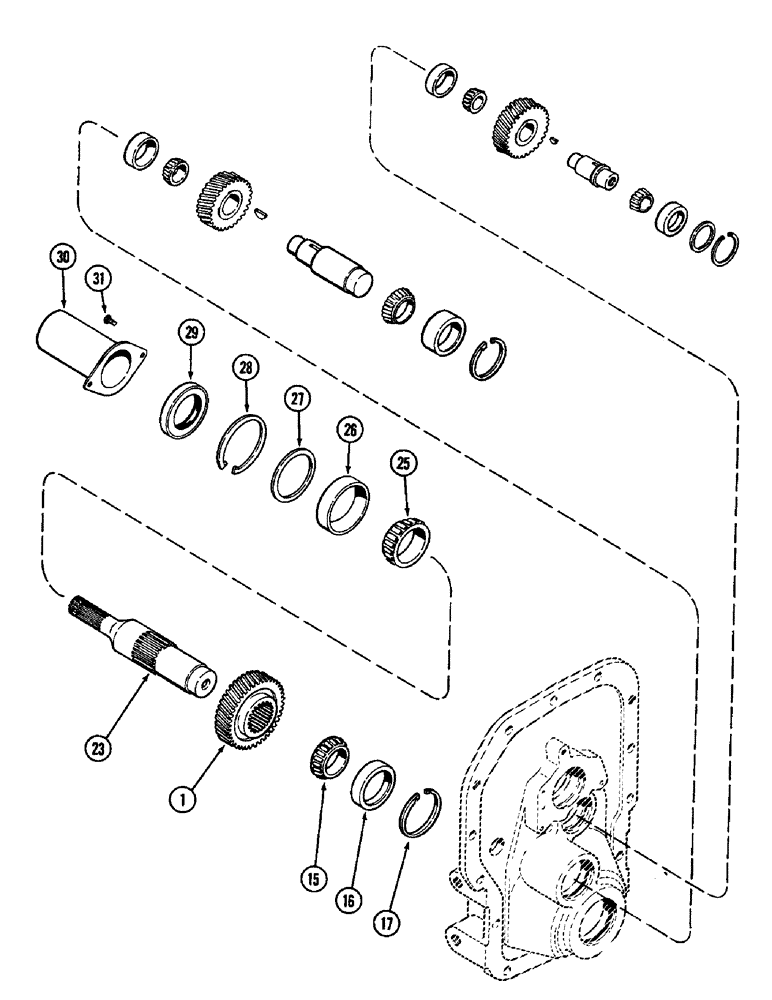

Запчасти Case IH 3294 (6-236) - PTO OUTPUT SHAFT, 1000 RPM (06) - POWER TRAIN

1

A179011

GEAR

- output, 1000 RPM (40 teeth) (Replaces A152772)

1шт.

The snap ring between Ref. 1, A179011, and Ref. 15, A150146, is A27233. (not shown)

1шт.

15

A150146

ROLLER BEARING,57.163 mm ID x 22.022 mm

CONE - front bearing, 2-1/4 inch (57 MM) ID

1шт.

The snap ring between Ref. 1, A179011, and Ref. 15, A150146, is A27233. (not shown)

1шт.

16

A30308

ROLLER BEARING,98.450 mm OD x 17.826 mm

CUP - front bearing, 3-7/8 inch (98 MM) OD

1шт.

17

A151609

RING

- snap, spacer, 0.062 inch (1.55 MM)

1шт.

17

A151608

RING

- snap, spacer, 0.067 inch (1.60 MM)

1шт.

17

A151607

RING

- snap, spacer, 0.072 inch (1.80 MM)

1шт.

17

A151606

RING

- snap, spacer, 0.077 inch (1.97 MM)

1шт.

17

A152252

RING

- snap, spacer, 0.082 inch (2.09 MM)

1шт.

17

A152251

RING

- snap, spacer, 0.087 inch (2.21 MM)

1шт.

17

A152250

RING

- snap, spacer, 0.092 inch (2.34 MM)

1шт.

17

A152249

RING

- snap, spacer, 0.097 inch (2.46 MM)

1шт.

17

A152248

RING

- snap, spacer, 0.103 inch (2.62 MM)

1шт.

23

A152771

SHAFT

- output

1шт.

25

R32215

ROLLER BEARING,2.7559" ID x 4.3307" OD x 1.02363"

CONE - rear bearing

1шт.

26

R32214

CUP

- rear bearing, 4-11/32 inch (110 MM) OD

1шт.

27

A152659

SPACER

- rear bearing

1шт.

28

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, , rear brg 4.331", Int, #433

1шт.

29

A140930

OIL SEAL

- oil

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49420

1шт.

30

A142425

GUARD

- output shaft

1шт.

31

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

A49420

SEAL

KIT - PTO clutch and brake, Includes: Ref. 29 in this figure and parts in Figure 6-232

1шт.
