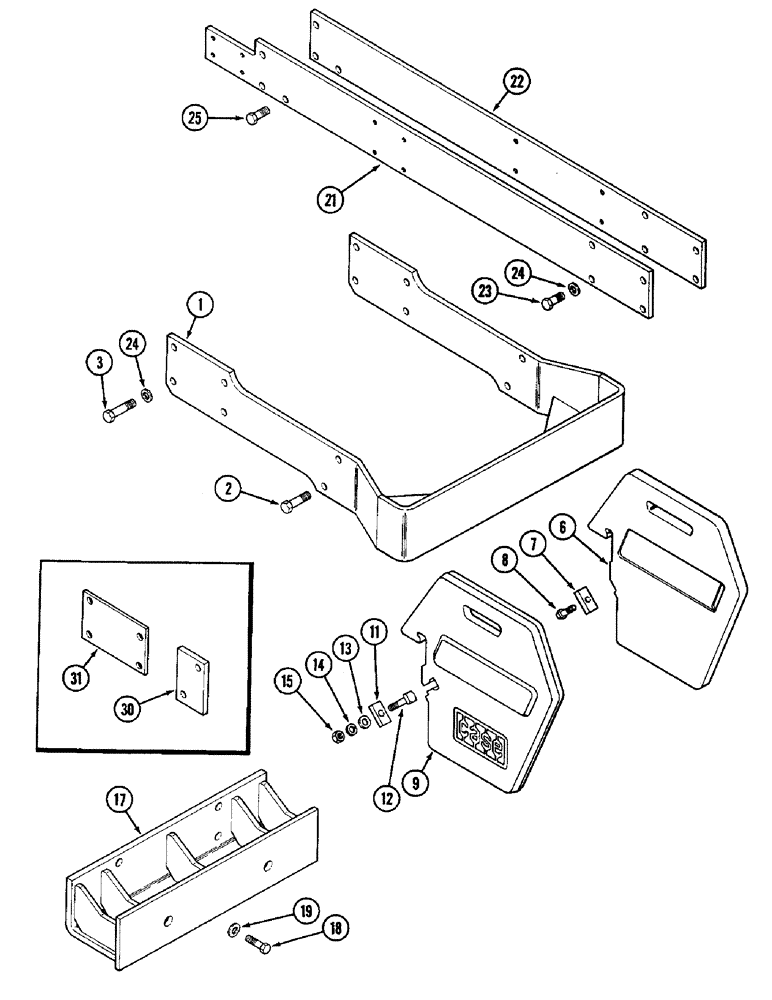

Запчасти Case IH 3294 (9-376) - WEIGHT SUPPORT FRAME AND SIDE RAILS, WITH 24-1/4 INCH (616 MM) INSIDE WIDTH OF WEIGHT SUPPORT FRAME (09) - CHASSIS/ATTACHMENTS

A67515

FRAME ATTACHMENT - support front end weight (Machinery item), Includes: Ref. 1 - 3

1шт.

1

A180014

FRAME - support, 24-3/16 inch (614 MM) inside width (Order A67515)

1шт.

2

113-774

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch (Grade 8)

4шт.

3

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Grade 8) Hex, 3/4"-10 x 3", G5

8шт.

A67373

WEIGHT

ATTACHMENT - front end (Machinery item), Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

WEIGHT - 75 pounds (35 KG) (Order A67373) (Reference No. A162263)

1шт.

7

A145919

CLAMP

- weight

1шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

9

A169111

WEIGHT

- front end, 100 pounds (45 KG) (Machinery item)

1шт.

A177102

KIT

- hardware attaching (Machinery item), Includes: Ref. 11 - 15

1шт.

11

A145919

CLAMP

- weight

1шт.

12

A169139

SQUARE BOLT

- square head

1шт.

13

195-533

WASHER,1/2", SAE

- flat, 1/2" (17/32 x 1-1/16 x 7/64") (13 x 27 x 3 mm)

1шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

A165959

WEIGHT

FRAME ATTACHMENT - front end (ZF axle only) (Machinery item), Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

FRAME - front end (Reference No. A177026)

1шт.

18

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

- hex, M20 x 2.5 x 55 MM

4шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

21

A161738

RAIL

- side, right, 60-17/32 inch (1 537 MM)

1шт.

22

A167560

RAIL ASSY.

RAIL - side, left, 53-35/64 inch (1 360 MM)

1шт.

23

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

24

A26462

WASHER

- hardened

8шт.

25

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 1-3/4 inch

6шт.

A67516

SPACER ATTACHMENT - front end support (Machinery item), spacer kit, Includes: Ref. 30 and 31

1шт.

30

A160542

BUSHING

SPACER - front end support frame, used on the front of the frame, spacer kit

2шт.

31

A162012

PLATE ASSY.

SPACER - front end support frame, used on the rear of the frame, spacer kit

4шт.
