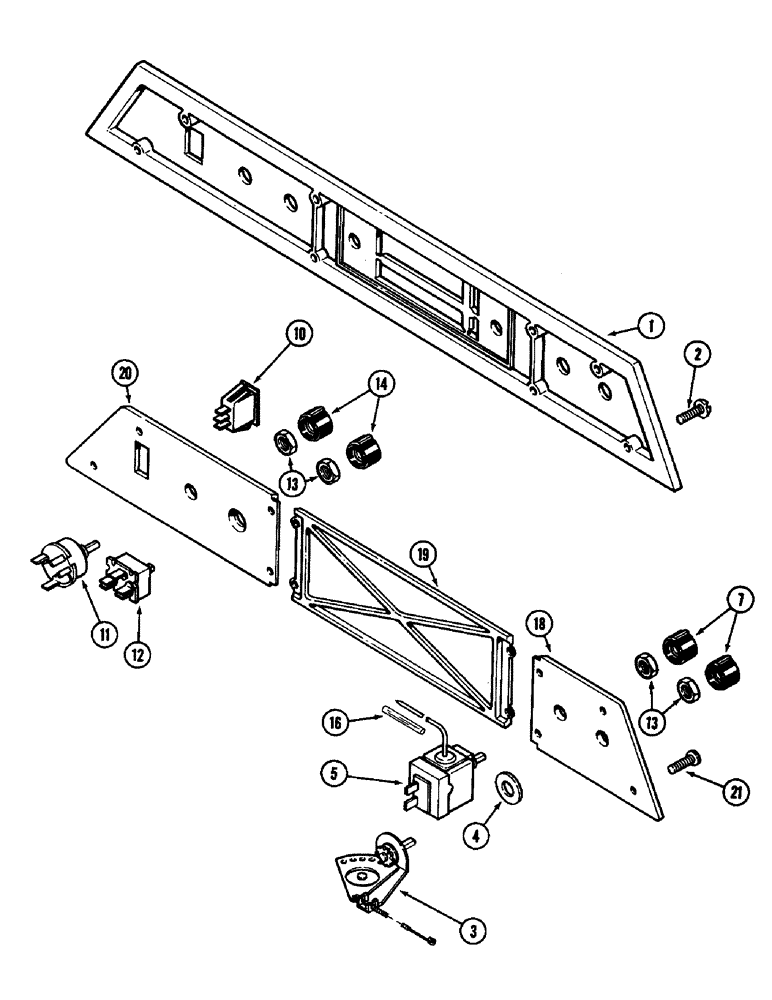

Запчасти Case IH 3294 (9-458) - CAB, HEADLINER CONTROL PANEL (09) - CHASSIS/ATTACHMENTS

1

F64629

PANEL ASSY.

PANEL - headliner control (Prior to cab serial No. 1217201)

1шт.

2

187-1921

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - pan head slotted, No. 10-16 x 3/4 inch

8шт.

3

F64666

CONTROL,1503.68mm L

- heater

1шт.

4

195-529

WASHER,7/16", SAE

- flat, 15/32 x 59/64 x 1/16 inch (12 x 23 x 2 mm)

1шт.

5

F43186

SWITCH ASSY

SWITCH - air conditioning (Order L73646)

1шт.

6

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- retaining

2шт.

7

F66127

BUTTON

KNOB - control (Replaces F64891)

2шт.

10

F64733

IGNITION SWITCH

SWITCH - dome light

1шт.

11

F43359

SWITCH

- wiper

1шт.

12

A42622

SWITCH

- blower

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- retaining

2шт.

14

F66127

BUTTON

KNOB - control (Replaces F64891)

2шт.

18

F66128

BEZEL

PANEL - control, front

1шт.

19

F66129

BEZEL & GASKET

PANEL - control, center

1шт.

20

F66139

BEZEL

PANEL - control, rear

1шт.

21

187-1333

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head Phillips, No. 10 x 3/4 inch

8шт.
