(8-48) - REMOTE VALVE ASSEMBLY, FIRST AND SECOND SECTION WITH LOAD CHECK (CONTINUED)

Запчасти Case IH 3394 (8-48) - REMOTE VALVE ASSEMBLY, FIRST AND SECOND SECTION WITH LOAD CHECK (CONTINUED) (08) - HYDRAULICS

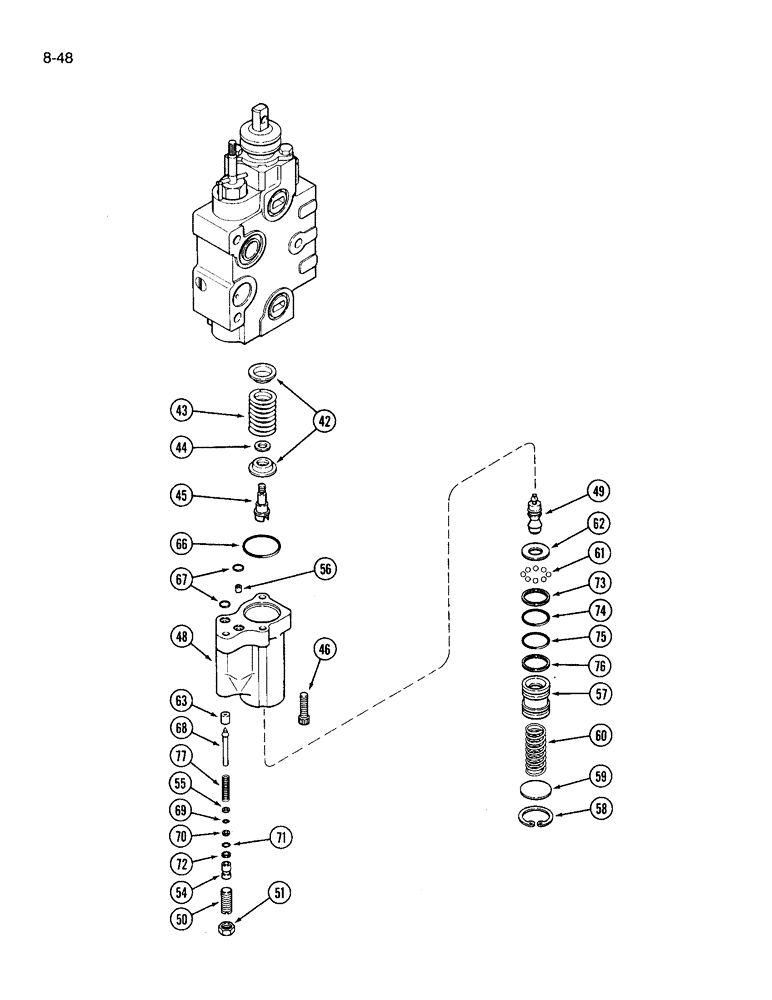

Схема запчастей Case IH 3394 - (8-48) - REMOTE VALVE ASSEMBLY, FIRST AND SECOND SECTION WITH LOAD CHECK (CONTINUED) (08) - HYDRAULICS
54
58
73
71
75
44
72
67
43
66
59
60
48
42
50
77
49
76
63
62
55
74
57
45
56
61
69
70
68
46
51
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1986840C1

VALVE

ASSEMBLY - remote control, priority float (Replaces A52404), Includes: Ref. 42 - 77 and 3 - 38 on Figure 8-46

1шт.

1986841C1

VALVE

ASSEMBLY - remote control, float (Replaces A52405), Includes: Ref. 42 - 77 and 3 - 38 on Figure 8-46

1шт.

42

A47197

RETAINER

- spring

2шт.

43

A47177

SPRING

- centering

1шт.

44

A47199

BUSHING

SPACER - detent

1шт.

45

A47193

COUPLING, BREAK AWAY

COUPLER - detent pivot

1шт.

46

61-32516

HEX SOC SCREW,1/4"-20 x 1"

SCREW - socket head cap, 1/4 NC x 1 inch

3шт.

A52435

HOUSING ASSY.

HOUSING ASSEMBLY - detent, Includes: Ref. 48 - 77

1шт.

48

NSS

NOT SOLD SEPARAT

HOUSING - detent

1шт.

49

A52409

SHAFT

- detent

1шт.

50

A52437

SET SCREW,3/8" - 24 x 1", Gr 7

- adjusting

1шт.

51

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

1шт.

54

A48936

GOVERNOR

PISTON - regulator

1шт.

55

A48935

WASHER

- poppet

1шт.

56

A47658

PLUG

- orifice

1шт.

57

A48932

PISTON

- kickout

1шт.

58

A30975

SNAP RING,1.188", Int, #118

1шт.

59

A48933

RING

RETAINER - piston

1шт.

60

A48934

SPRING

- detent

1шт.

61

211-205

BALL

- 7/32 inch, grade 200, chrome alloy steel

8шт.

62

A48931

WASHER

- guide

1шт.

63

A47201

SEAT

- pilot float assembly

1шт.

A48942

KIT

- service, detent seals, Includes: Ref. 66 - 77

1шт.

66

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk

1шт.

67

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

68

NSS

NOT SOLD SEPARAT

POPPET - detent

1шт.

69

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk

1шт.

70

A52378

RING,Split, 3.56mm ID x 6.3mm OD x 1.32mm Thk

- back-up

1шт.

71

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

72

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

73

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

RING - backup

1шт.

74

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

75

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

76

A52208

SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk

RING - backup

1шт.

77

NSS

NOT SOLD SEPARAT

SPRING - relief

1шт.
