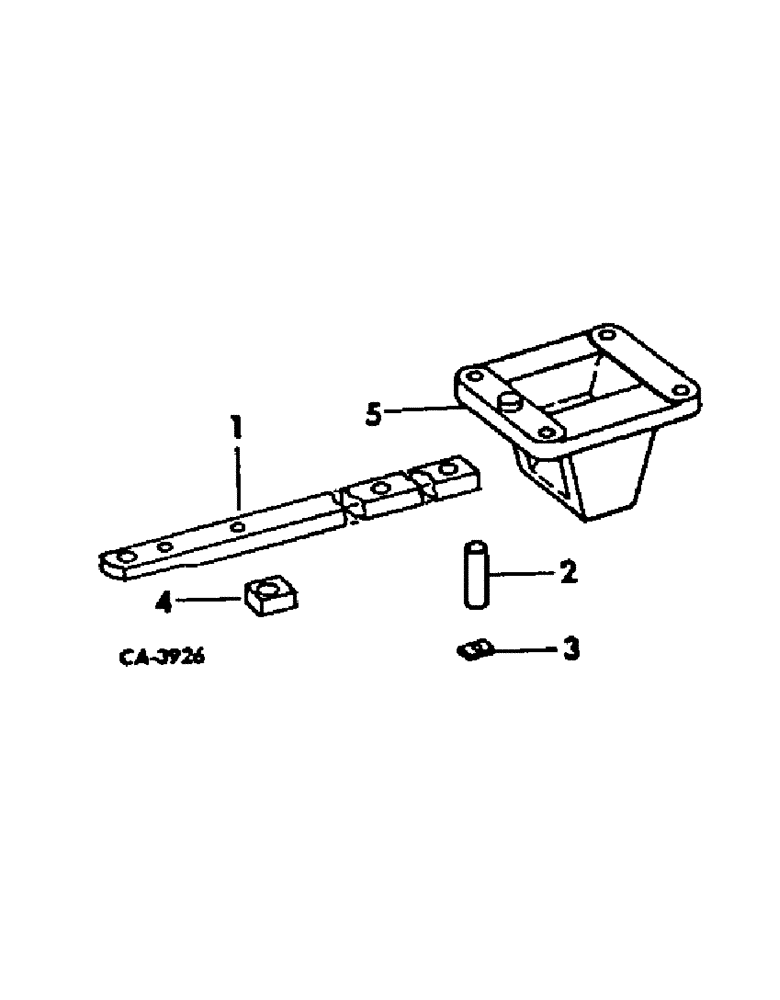

Запчасти Case IH 3488 (09-03) - FRAME, SWINGING DRAWBAR, ONE PIECE, PART OF THREE POINT HITCH ATTACHMENT (12) - FRAME

1

1252172C1

BAR

DRAWBAR swinging, 1616 MM

1шт.

2

108505C1

PIN

drawbar

1шт.

3

67828C1

RETAINER

pin

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

108507C1

BLOCK

drawbar stop

2шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

3/4 x 1-3/4 pln type 5

2шт.

5

SUPPORT ASSY swinging drawbar pivot, Refer to rear frame and covers, group 7

1шт.

108511C91

PACKAGE

PARTS accessory, hammer strap, For tractors equipped with one piece swinging drawbar

1шт.
