(8-084) - HYDRAULICS, SEAT PRESSURE REGULATOR VALVE

Запчасти Case IH 3594 (8-084) - HYDRAULICS, SEAT PRESSURE REGULATOR VALVE (08) - HYDRAULICS

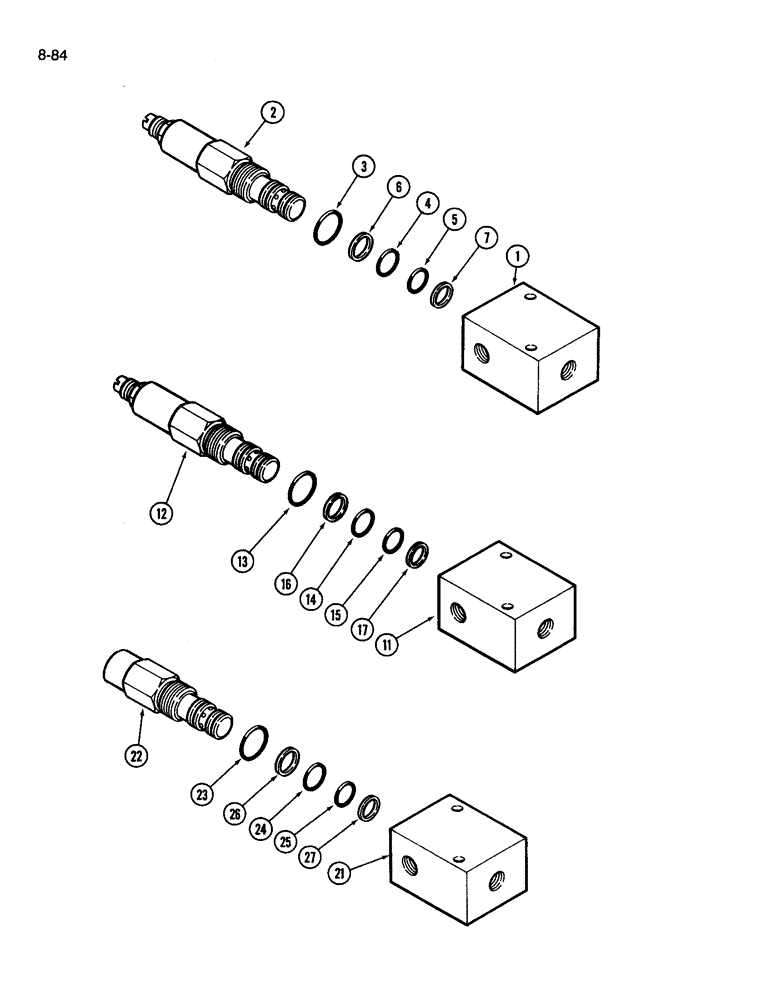

Схема запчастей Case IH 3594 - (8-084) - HYDRAULICS, SEAT PRESSURE REGULATOR VALVE (08) - HYDRAULICS
15
21
22
4
27
1
25
13
12
6
17
24
23
26
16
14
2
5
3
11
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A169536

VALVE

PRESSURE REGULATOR VALVE ASSEMBLY, Order 1986915C1, Includes Ref. 1 - 7, delta part no. 85005281

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve, Order 1986915C1

1шт.

2

A48951

VALVE

CARTRIDGE ASSEMBLY

1шт.

A48950

KIT

Seal, regulator valve, Order components, Includes Ref. 3 - 7

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

5

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

6

L30012

RING

seal, backup

1шт.

7

T40181

RING

seal, backup

1шт.

A185476

VALVE

PRESSURE REGULATOR VALVE ASSEMBLY, Order 1986915C1, Includes Ref. 11 - 17, delta part no. 85005356

1шт.

11

NSS

NOT SOLD SEPARAT

BODY valve, Order 1986915C1

1шт.

12

A52413

VALVE

CARTRIDGE ASSEMBLY, Order A48951

1шт.

A48950

KIT

Seal, regulator valve, Order components, Includes Ref. 13 - 17

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

15

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

16

L30012

RING

seal, backup

1шт.

17

T40181

RING

seal, backup

1шт.

1986915C1

VALVE

PRESSURE REGULATOR VALVE ASSEMBLY, Includes Ref. 21 - 27, delta part no. 85005668

1шт.

21

NSS

NOT SOLD SEPARAT

BODY valve, Order 1986915C1

1шт.

22

A52414

CARTRIDGE

VALVE CARTRIDGE ASSEMBLY

1шт.

A48950

KIT

Seal, regulator valve, Order components, Includes Ref. 23 - 27

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

25

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

26

L30012

RING

seal, backup

1шт.

27

T40181

RING

seal, backup

1шт.
