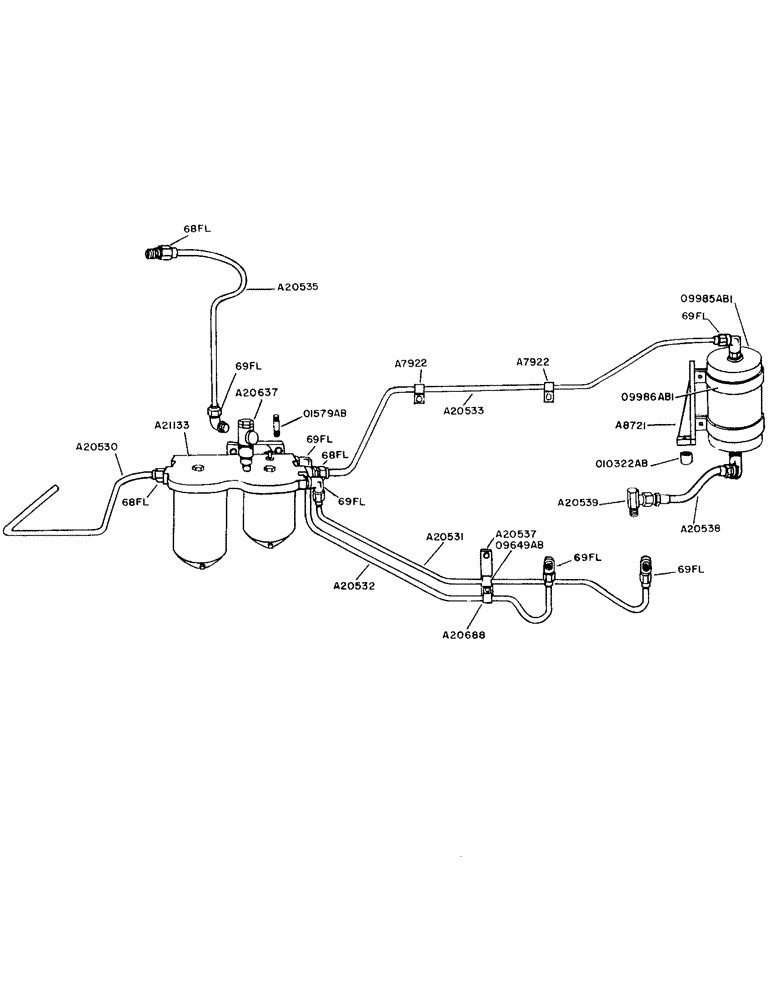

Запчасти Case IH 900 (024) - FUEL FILTERS AND TUBES, SERIAL NUMBER 8141036 AND AFTER, FIRST & SECOND STAGE FUEL FILTERS AND TUBES (03) - FUEL SYSTEM

A20530

TUBE - fuel tank to first stage filter

1шт.

Imperial flex. connector #68FL (3/8" x 1/4" PT)

1шт.

A20531

TUBE

- first stage, Serial Range: filter-pump

1шт.

Imperial flex. elbow #69FL (3/8" tube x 11/4" PT)

2шт.

A20532

TUBE - fuel pump to second stage filter

1шт.

Imperial flex. elbow #69FL (5/16" tube x 1/4" PT)

2шт.

A20535

TUBE - leakoff, relief valve to fuel tank

1шт.

Imperial flex. connector #68FL (5/16" tube x 1/4" PT)

1шт.

Imperial flex elbow #69FL (5/16" tube x 1/4"PT)

1шт.

A20537

SUPPORT - for #09649AB clips

1шт.

3/8" x 3/4" fin. hex. bolt N.C. w/int. tooth lockwasher (support, Serial Range: -block)

1шт.

1/4" x 1/2" rhd. mach. screw N.C. lockwasher, Serial Range: (support-clip)

1шт.

A20637

LOCK VALVE

VALVE - relief, American Bosch (VA7928A)

1шт.

A20688

CLIP

- second stage filter to fuel tank

1шт.

A21133

FILTER

- first and second stage fuel (assembly)

1шт.

O1579AB

STUD - A21077 filter, Serial Range: head-block

2шт.

3/8" fin. hex. nut N.F. w/lockwasher

2шт.

O9649AB

CLIP for A20531

1шт.

A7922

CLIP

for A20533 fuel tube to decompression housing, third stage, filter and

2шт.

A8721

BRACKET - final stage fuel filter, third, and tubes

1шт.

7/16" fin. hex. bolt N.C. w/lockwasher, third stage fuel filter and tubes

2шт.

A20533

TUBE

- second stage filter to final stage, third, fuel, and

1шт.

Imperial flex. connector #68FL (5/16" tube x 1/4" P.T.) tube to second filter, third stage, fuel, and

1шт.

Imperial flex. elbow #69FL (5/16" tube x 1/4" P.T.) tube to final filter, third stage, fuel, and

1шт.

A20538

FUEL HOSE,0.38" ID x 8.50"

Final stage filter to pump, third, fuel and tubes 0.38" ID x 8.50"

1шт.

1/4" 90 degree street elboe, brass (hose to filter), third stage, fuel, and tubes

1шт.

A20539

FITTING

UNION - 90 degree adapter, connects A20538 hose to fuel pump, third stage, filter, and tubes

1шт.

O9985AB1

FILTER - final stage, third, fuel, and tubes

1шт.

O9986AB

CLAMP- final stage filter, third, fuel, and tubes

2шт.

5/16" x 1/2" fin. hex. bolt, N.C. w/shakeproof ext.-int. lockwasher #4018-24, third stage fuel filter and tubes

1шт.

5/16" x 3/4" fin. hex. bolt, N.F. w/shakeproof ext.-int. lockwasher #4018-24, third stage fuel filter and tubes

3шт.

1/4" x 1-1/2" rhd. mach. screw w/hex. nut, third stage fuel filter and tubes

2шт.

5/16" fin. hex. nut N.F., third stage fuel filter and tubes

3шт.

O10322AB

SPACER - filter mounting (without power steering), third stage, fuel, and tubes

2шт.

Imperial #60FL nut and #61 FL sleeve (5/16" tube) for A20531, A20532, A20535 and A20533 tubes, for fuel tabs

1шт.

Imperial #60FL nut and #61FL sleeve (3/8" tube) for A20530 tube, for fuel tabs

1шт.
