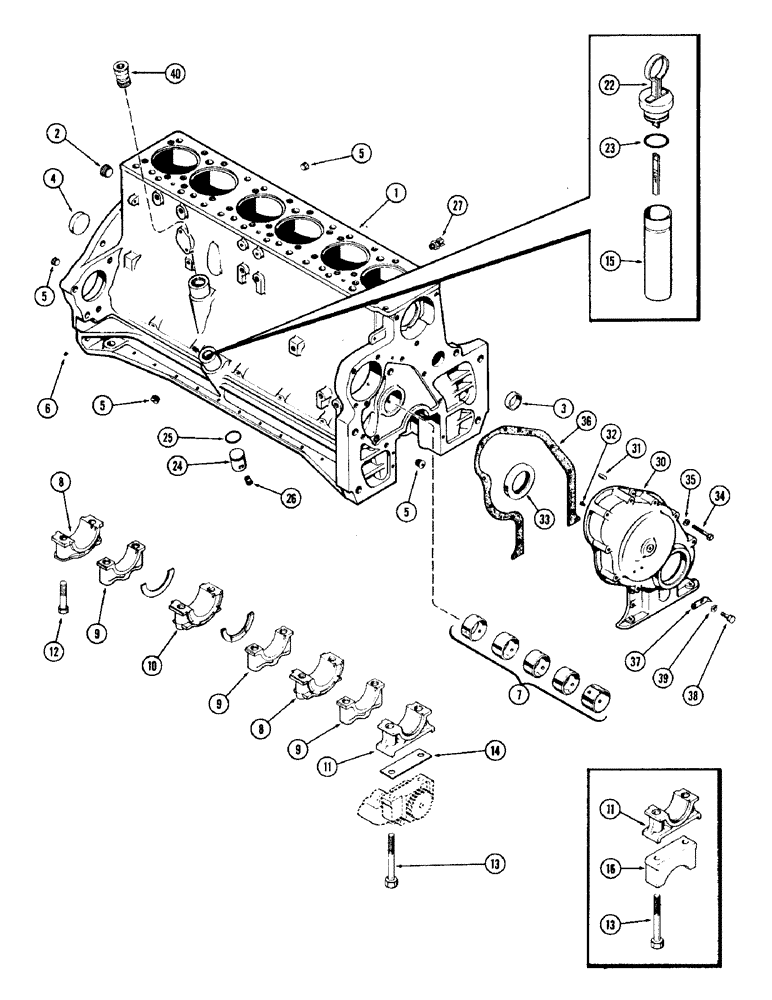

Запчасти Case IH 930-SERIES (010) - CYL. BLOCK ASSY., (401) DIESEL ENGINE, USED WITH FRONT MOUNTED OIL PUMP, 1ST USED ENGINE S/N 2174169 (02) - ENGINE

A41235

SKELETON ENGINE

BLOCK ASSY. - cylinder, short (incl. stripped block, canshaft, crankshaft & brgs, timing gears, piston assy, connecting rods & brgs. & oil pump gear) (Casting No. A34971), Includes: Ref. 1 - 40

1шт.

Loose oil pump gear and oil pump spacer included w/this block are not used w/front MTD. Oil pump application

1шт.

1

A41219

SPARE PART

BLOCK ASSY. - stripped (Casting No. A34971), Includes: Ref. 2 - 16

1шт.

2

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - water gallery, rear (1" P.T., sckt. hd.)

1шт.

3

41-1628

PLUG,Cup, 1 3/4", Stainless

- water gallery, front (1-3/4" cup type)

1шт.

4

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

5

221-843

PLUG,Hex Soc, 3/8"-18

- cyl. block (3/8" P.T., sckt. hd.)

6шт.

6

221-41

PLUG

- cyl, block (1/8" P.T., sltd. hd.)

5шт.

7

A23544

BUSHING

SET - camshaft

1шт.

8

A24941

CAP

- main brg., wide

2шт.

9

A24942

CYLINDER END CAP

CAP - main brg., narrow

3шт.

10

A24943

CAP

- main brg., thrust

1шт.

11

A34937

HOLDER

CAP - main brg., front

1шт.

12

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- brg. caps (5/8 x 3-1/4" N.C. spec.)

12шт.

13

113-637

BOLT

- front brg. cap & oil pump (or spacer) (5/8 x 6" N.C. hex.)

2шт.

14

A57454

SHIM,.005" Thk

Oil pump to brg. cap .005" Thk

1шт.

14

A57455

SHIM,.010" Thk

Oil pump to brg. cap .010" Thk

1шт.

14

A57456

SHIM,.025" Thk

Oil pump to brg. cap .025" Thk

1шт.

15

A34540

TUBE

SOCKET - oil filler

1шт.

16

A57076

SPACER - oil pump filler block

1шт.

Loose oil pump gear and oil pump spacer included w/this block are not used w/front MTD. Oil pump application

1шт.

22

A34541

DIPSTICK

GAUGE ASSY. - oil level, Includes Ref:23

1шт.

23

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - oil level gauge (3/4 x 1 x 1/8")

2шт.

24

A34964

PLUG

- oil gallery hole

1шт.

25

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - plug (1-3/16 x 1-7/16 x 1/8")

1шт.

26

A22593

SET SCREW,1/4" - 18 x 7/8"

- plug

1шт.

27

A23656

COCK, DRAIN

VALVE - drain, cyl. block

1шт.

30

A57403

COVER

ASSY. - timing gears, Includes: Ref. 31 - 33

1шт.

31

A27840

PIN

- cover locating (5/16 x 3/4")

2шт.

32

A27869

BUTTON - thrust

2шт.

33

A57342

SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2")

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

34

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover (3/8 x 2-1/2" N.C. hex)

7шт.

35

92-6

LOCK WASHER,3/8"

9шт.

36

A33018

GASKET

- timing gear cover

1шт.

37

A21362

CLIP

POINTER - timing indicator

1шт.

38

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

39

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

2шт.

40

A33610

DRIVE

ASSY. - tachometer

1шт.
