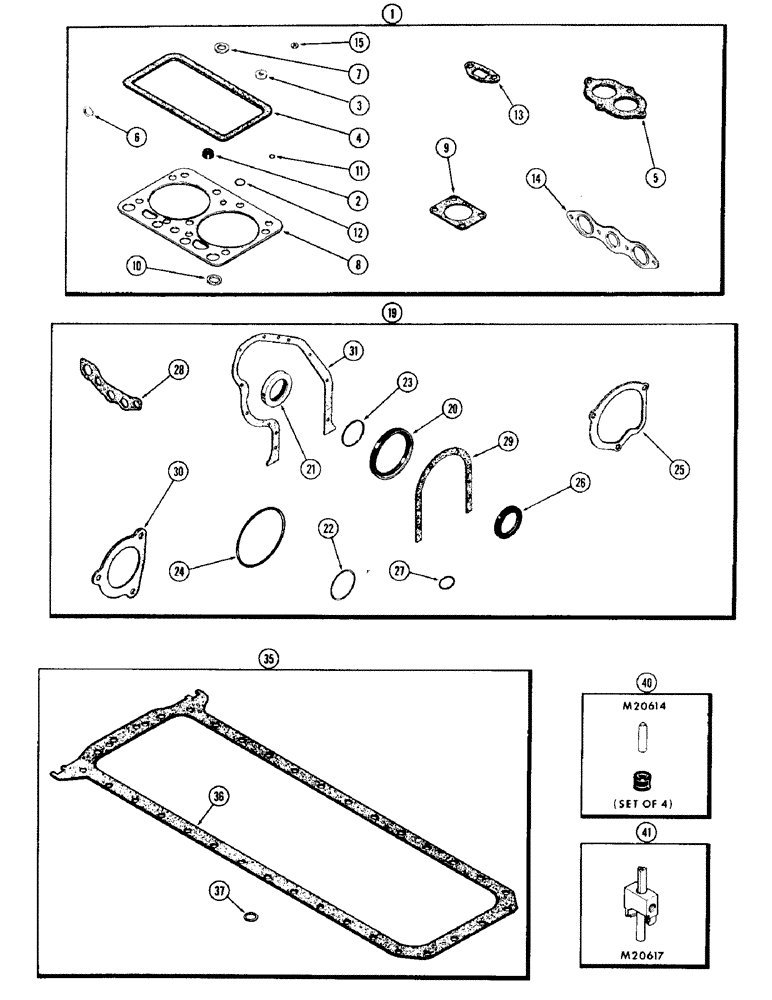

Запчасти Case IH 930-SERIES (018) - ENGINE GASKET KITS, (401) DIESEL ENGINE (02) - ENGINE

1

A40440

KIT

GASKET KIT - valve grind, Includes Ref: 2 - 15

1шт.

For complete engine overhaul order: 1-A40440, 1-A40443, 1-A40444, 1-M20614 and 1-M20617

1шт.

2

A10726

SEAL

SHIELD - intake valve stem (Rubber)

6шт.

3

A23684

GASKET

GASKET - cover stud (15/32 x 7/8 x 1/8" rubber)

6шт.

4

A57595

CYLINDER HEAD GASKET

- cyl. head cover (Replaces A27972)

3шт.

5

A32612

GASKET

- thermostat housing

1шт.

6

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - injector nozzle

6шт.

7

A23685

GASKET

- breather, Serial Range: tube-cover

3шт.

8

A23118

GASKET

- cylinder head

3шт.

9

A20678

GASKET

- intake elbow

1шт.

10

A7669

RING

"O" RING - water passage (7/8 x 1-3/32 x 5/64" rubber)

6шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, rocker shaft (3/16 x 5/16 x 1/16")

3шт.

12

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32")

3шт.

13

A27905

GASKET

- water manifold

6шт.

14

A34875

GASKET,2.2mm Thk

- manifold, int. & exh. (Replaces A24717)

3шт.

15

A34133

GASKET

- breather tube bolt (9/32 x 1/32 x 3/64" fiber)

3шт.

19

A40443

KIT

GASKET KIT - cylinder block, Includes: Ref. 20 - 31

1шт.

For complete engine overhaul order: 1-A40440, 1-A40443, 1-A40444, 1-M20614 and 1-M20617

1шт.

20

A23085

OIL SEAL

- oil, crankshaft, rear (4-3/4 x 5-3/4 x 1/2")

1шт.

21

A57479

OIL SEAL

- oil, clutch shaft, front (Replaces A7144) (1-1/2 x 2-19/64 x 7/16")

1шт.

22

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - front clutch shaft ret. (2-1/2 x 2-3/4 x 1/8")

1шт.

23

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft (2-3/4" x 3 x 1/8")

1шт.

24

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump drive hsg. (4-1/2 x 4-3/4 x 1/8")

1шт.

25

A57596

GASKET

- water pump (replaces A27899)

1шт.

26

A57342

SEAL

- oil crankshaft, front (Replaces A23433) (2-5/8 x 3-5/8 x 1/2")

1шт.

27

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump (For cam driven pump) (1-3/16 x 1-7/16 x 1/8")

2шт.

28

A21084

GASKET

- oil filter base

1шт.

29

A32630

GASKET - rear seal retainer

1шт.

30

A27933

GASKET

- starting motor

1шт.

31

A33018

GASKET

- timing gear cover

1шт.

A20939

OIL SEAL

- clutch shaft, front (2-3/4 x 3-5/8 x 3/8") (Not used this application) (not illust.)

1шт.

35

A40444

KIT

GASKET KIT - oil pan, Includes: Ref. 36 and 37

1шт.

For complete engine overhaul order: 1-A40440, 1-A40443, 1-A40444, 1-M20614 and 1-M20617

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order Ref. 35)

1шт.

37

A58608

GASKET

- drain plug (nylon) (Replaces A27927)

1шт.

40

M20614

SEAL KIT

SEAL KIT - valve (Set of 4 w/plastic cap) (recommended for use w/eng. overhaul or re-ring jobs)

3шт.

41

M20617

TOOL

KIT - valve guide machining

1шт.
