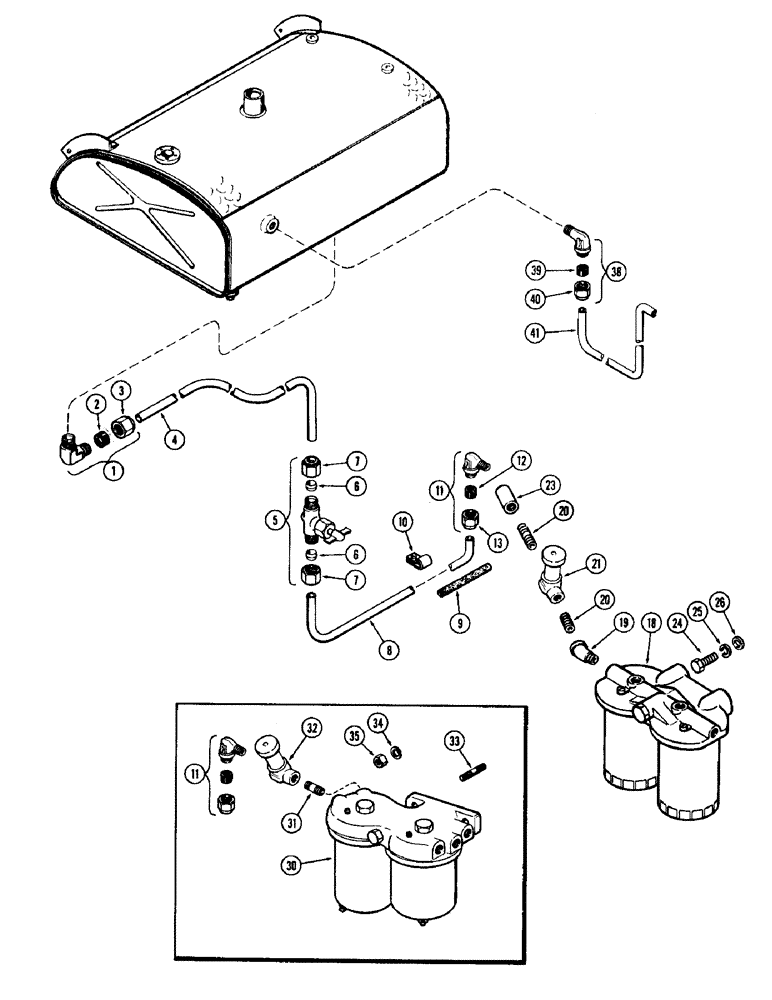

Запчасти Case IH 930-SERIES (023A) - FUEL LINES, (401) DIESEL ENGINE, FIRST USED TRACTOR SERIAL NUMBER 8291471 (03) - FUEL SYSTEM

1

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

ASSY. - (in tank), Includes: Ref. 2 and 3

1шт.

2

222-104

SLEEVE,3/8" Tube

- rubber (For ) 3/8" Tube

1шт.

3

222-114

NUT,5/8"-24

NUT - (For 3/8" tube)

1шт.

4

A57059

TUBE

- fuel tank to needle valve (approx. 9-3/8" long) (1st used trac. ser. no. 8301578)

1шт.

4

A34768

TUBE - fuel tank to needle valve (approx. 16-1/4" lg.) (used prior to trac. ser. no. 8301578)

1шт.

5

217-270

LOCK VALVE

VALVE ASSY. - fuel shut-off, Includes: Ref. 6 and 7

1шт.

6

222-654

FERRULE,3/8" Tube, Comp

- metal (For 3/8" tube)

2шт.

7

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - (For 3/8" tube)

2шт.

8

A57058

TUBE - needle valve to primer pump (1st used trac. ser. no. 8301578)

1шт.

8

A34767

TUBE - needle valve to primer pump (used prior to trac. ser. no. 8301578)

1шт.

9

A57060

LOOM - tube (7/16" I.D. x 61") (1st used trac. ser. no. 8301578)

1шт.

9

A27239

LOOM - tube (7/16" I.D. x 11") (used prior to rac. ser. no. 8301578)

1шт.

10

A57061

CLIP

- tube, w/7/16" hole (1st used trac. ser. no. 8301578)

2шт.

10

A22880

CLIP

- tube, w/17/32" dia. hole (used prior to trac. ser. no. 8301578)

1шт.

11

222-95

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

ASSY - fuel line to primer pump (45 Deg.), Includes Ref: 12 and 13

1шт.

12

222-104

SLEEVE,3/8" Tube

- rubber (For ) 3/8" Tube

1шт.

13

222-114

NUT,5/8"-24

NUT - (For 3/8" tube)

1шт.

18

A60032

HEAD

ASSY. - filter, spin-on-type (See Fig. 25A) (1st used eng. ser. no. 2205978)

1шт.

19

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

- (at filter head) (45 Deg. brass)

1шт.

20

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - (1/4" P.T. x 1")

2шт.

21

A60042

PUMP

ASSY. - hand primer (Replaces A23865)

1шт.

21

A60042R

REMAN-FUEL LIFT PUMP

Hand Primer

1шт.

21

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

23

221-336

COUPLING,Pipe, 1/4" NPT

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Filter Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.

30

A40435

FILTER

ASSY. - fuel (1st & 2nd stage) (See Fig. 25C) (used prior to eng. ser. no. 2205978)

1шт.

31

221-137

PIPE,Nipple, 1/4" NPT x 2"

NIPPLE - pump to filter (1/4" P.T. x 2")

1шт.

32

A60042

PUMP

ASSY. - hand primer (Replaced A23865)

1шт.

32

A60042R

REMAN-FUEL LIFT PUMP

Hand Primer

1шт.

32

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

33

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

STUD - filter (3/8" N.F. x 1-9/16") (Replaces A26554)

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

2шт.

38

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - leak-off return

1шт.

39

222-102

SLEEVE,1/4" Tube

1шт.

40

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" tube)

1шт.

41

A9046

TUBE - fuel leak-off return

1шт.
