(077A) - A33058 POWER STEERING GEAR, GENERAL PURPOSE MODELS

Запчасти Case IH 930-SERIES (077A) - A33058 POWER STEERING GEAR, GENERAL PURPOSE MODELS (05) - STEERING

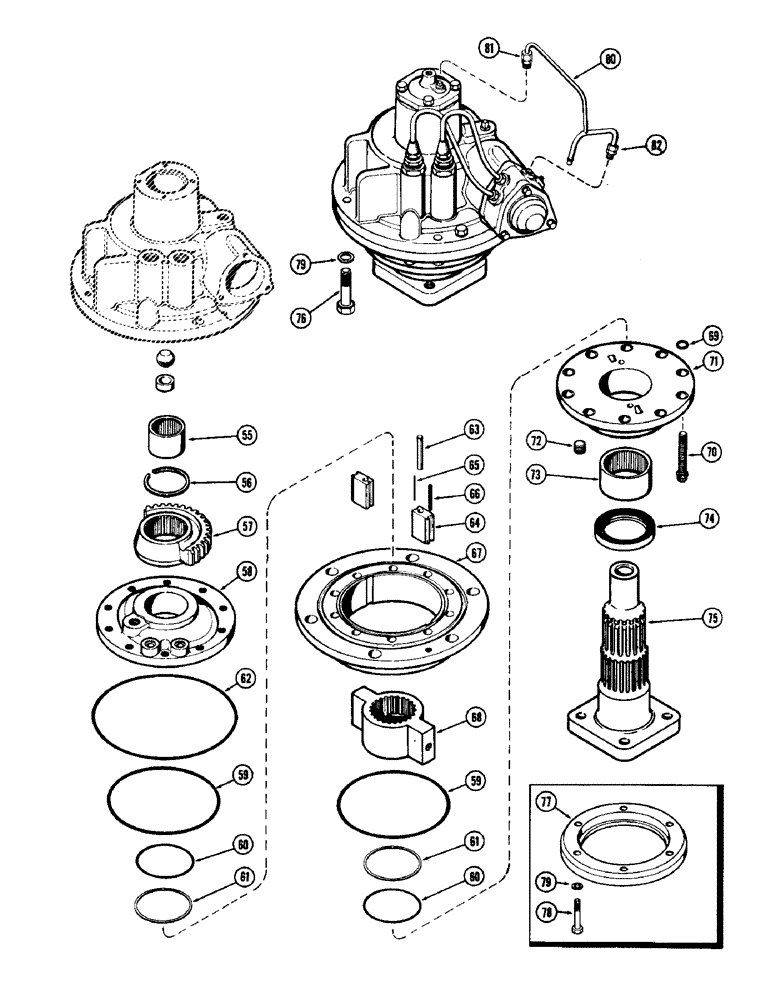

Схема запчастей Case IH 930-SERIES - (077A) - A33058 POWER STEERING GEAR, GENERAL PURPOSE MODELS (05) - STEERING
56
59
62
81
68
72
58
74
82
79
69
61
66
76
70
65
79
73
71
63
67
59
75
57
61
77
80
60
64
78
55
60
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A33058

GEAR ASSY. - steering (cont. from Fig. 76)

1шт.

55

A28310

BEARING, NEEDLE,1.75" ID x 2.1255" OD x 1.5"

BEARING - needle, spindle, upper

1шт.

56

A27760

RING, SNAP

RING - snap, sector gear ret.

1шт.

57

A33061

GEAR

- sector (L.H. Helix)

1шт.

58

A32202

COVER - vane, upper

1шт.

59

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - body, outer (6-1/4 x 6-1/2 x 1/8")

2шт.

60

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

"O" RING - body, inner (3-1/4 x 3-7/16 x 7/64")

2шт.

61

A32191

RING

- "O" ring back-up (Teflon)

2шт.

62

A28319

O-RING,8.234" ID x 8.512" OD x 0.139"

"O" RING - cover (8-1/4 x 8-1/2 x 1/8")

1шт.

63

A32201

SEAL

PIN - stationary vane (3/8 x 2-21/32")

2шт.

64

A34187

VALVE POPPET

VANE - stationary (2-11/64" high)

2шт.

65

A57043

SEAL

SEAL - stationay vane (9/64 x 2-3/16" rubber) (Replaces A33522)

2шт.

66

A32199

SEAL

SEAL - stationary vane

2шт.

67

A32193

BOSY - vane

1шт.

68

A32194

VANE ASSY. - torque motor

1шт.

69

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - cover bolts (7/16 x 5/8 x 3/32")

10шт.

70

166-74

BOLT - cover (7/16 x 3-1/4" N.C., 12 pt. hd.) 12 Pt Flg, 7/16"-14 x 3 1/4", G8

10шт.

71

A32187

COVER - vane, lower

1шт.

72

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Cover Hex Soc, 1/4"-18 NPTF

1шт.

73

A32188

BEARING, NEEDLE,3" ID x 3.5045" OD x 1.125"

BEARING - needle, spindle lower (3" I.D. x 1-1/4")

1шт.

74

A32189

OIL SEAL

SEAL - oil, spindle (3 x 4 x 1/2")

1шт.

75

A32186

SPINDLE - steering

1шт.

76

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Str. gear (used w/o ring) Hex, 5/8"-11 x 2 1/4", G5

1шт.

76

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Str. gear (used w/o ring) Hex, 5/8"-11 x 2 1/2", G5

5шт.

77

A33869

RING - str. gear support

1шт.

78

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- (used w/A33869 ring) (5/8 x 3-1/2" N.C. hex.)

1шт.

78

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- (used w/A33869 ring) (5/8 x 3-3/4" N.C. hex.)

5шт.

79

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

80

A23346

TUBE ASSY.

TUBE - bleed

1шт.

81

222-28

HYD CONNECTOR,5/8"-24 x 3/8" NPTF W/Nut

CONNECTOR - tube (3/8" P.T. male)

1шт.

82

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - tube (1/8" P.T. male)

1шт.
