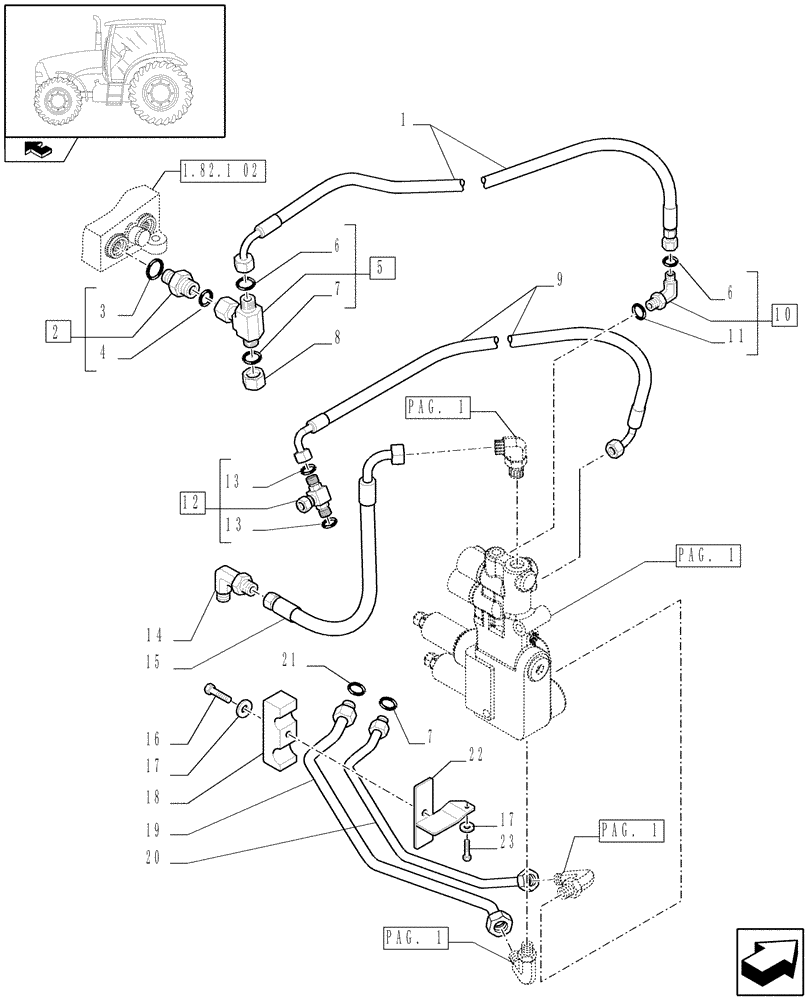

Запчасти Case IH PUMA 115 (1.21.2[02]) - SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK - PIPES - C5833 (VAR.330414-330427-330429-330430) (04) - FRONT AXLE & STEERING

1

87519163

HYDRAULIC HOSE

1шт.

2

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

3

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

4

A14157

FLANGE

1шт.

5

87630883

HYD CONNECTOR

1шт.

6

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

7

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

8

83987627

CAP,1-14UN-2A

1шт.

9

87580025

HOSE

1шт.

10

5188442

HYD CONNECTOR,11/16-16 ORFS x M14 x 1.5 ORB

1шт.

11

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

12

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

13

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

14

87315465

HYD CONNECTOR,13/16"-16 ORFS x 13/16"-16 ORFS x M16 x 1.5 ORB

M16

1шт.

15

87519165

HYDRAULIC HOSE

1шт.

16

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

17

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

18

87519166

CLAMP BRACKET

1шт.

19

87536621

PIPE

SUPPLY

1шт.

20

87531660

PIPE

DISCHARGE

1шт.

21

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

22

87536618

BRACKET

1шт.

23

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.
