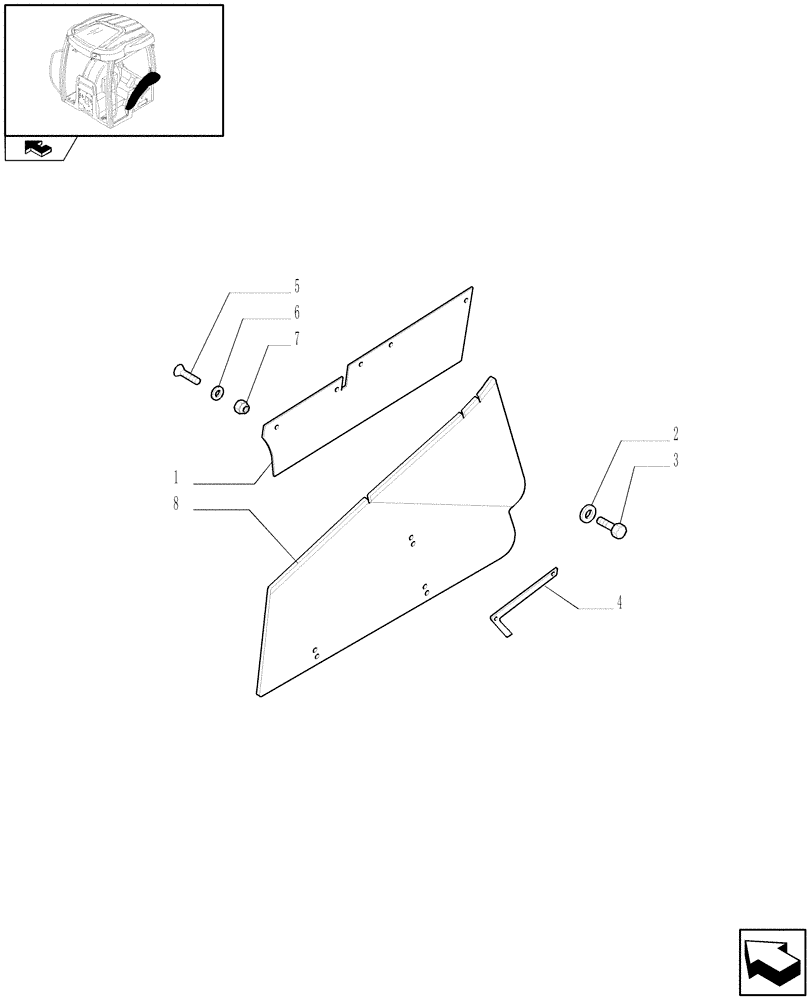

Запчасти Case IH PUMA 115 (1.92.5/01[02]) - WIDE REAR FENDERS - SUPPORTS AND CABLE (VAR.330518-331518-332518-333518-330519-331519-332519-333519) (10) - OPERATORS PLATFORM/CAB

1

87395996

MUDFLAP

, Serial Range: -C5825

2шт.

1

87705290

MUDFLAP

, Start Serial: D5825

2шт.

2

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

6шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

4

87580850

SUPPORT

, Serial Range: -C5825

2шт.

4

87705291

SUPPORT

, Start Serial: D5825

2шт.

5

86511831

SCREW,Phillips Drive, Pan HD, M6 x 25mm

4шт.

6

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

10шт.

7

12574211

NUT,M6 x 1, Cl 8

4шт.

8

87623580

DEFLECTOR

LH, Serial Range: -C6232

1шт.

8

87484525

DEFLECTOR

RH

1шт.

8

84156116

DEFLECTOR

, Start Serial: D6232

1шт.
