(1.94.0/01[03]) - NAR ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - HEADLINER - C5936

Запчасти Case IH PUMA 115 (1.94.0/01[03]) - NAR ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - HEADLINER - C5936 (10) - OPERATORS PLATFORM/CAB

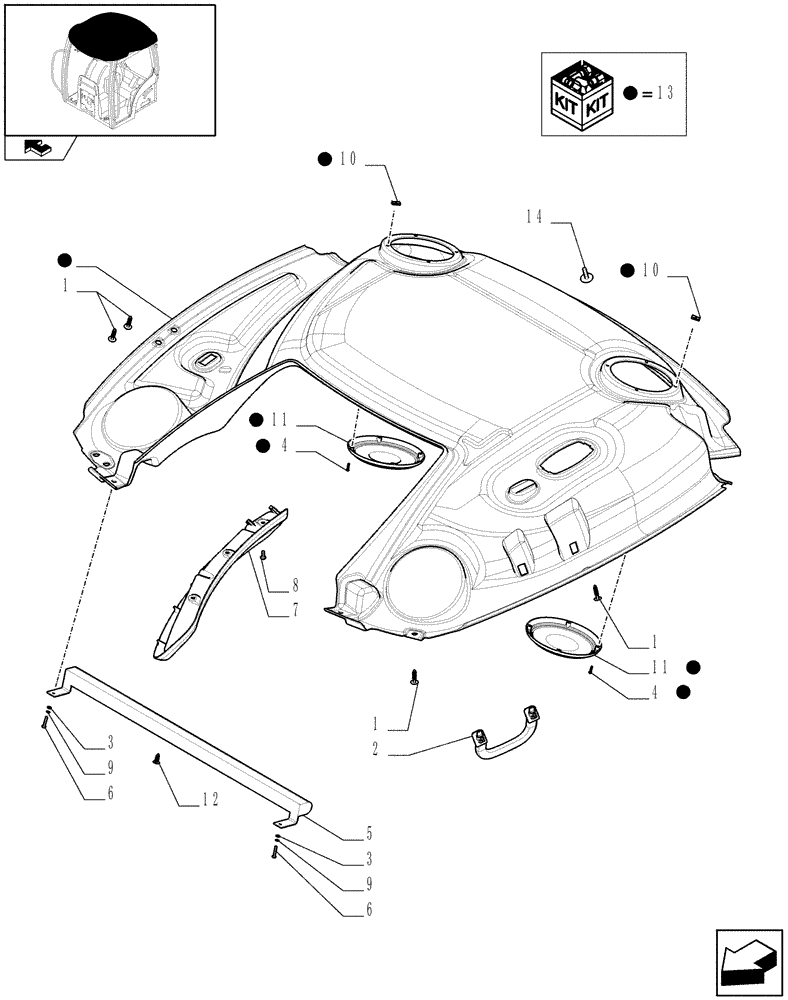

Схема запчастей Case IH PUMA 115 - (1.94.0/01[03]) - NAR ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - HEADLINER - C5936 (10) - OPERATORS PLATFORM/CAB
13
3
13
13
1
1
11
13
14
11
13
10
8
4
7
3
9
13
10
9
1
2
6
home
5
13
13
6
13
4
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

4шт.

2

84227380

HANDLE

1шт.

3

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

82028310

SUN CURTAIN

1шт.

6

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

2шт.

7

82033809

CONSOLE

1шт.

7

82038590

CONSOLE

1шт.

Two Telescopic, Heated and with Remote Adjustment Rear-View Mirrors, with High Visibility Panel, VAR.330827

1шт.

8

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

3шт.

9

12605271

WASHER

2шт.

10

81872135

NUT,Retaining, M4.20

8шт.

11

82022875

GRILLE,185mm OD

2шт.

12

81870039

FASTENER,M8 x 1.5 x 22mm

1шт.

13

87521212

ROOF LINING

1шт.

14

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.
